Description
Super Flower Leadex VII Platinum PRO 850 Watt SMPS fully complies with Intel ATX 3.0 specifications, offering up to 200% power excursion for enhanced performance. This Power Supply Support NVIDIA SLI & ATI CrossFireX High Performance GPU
Features:
LEADEX VII Platinum PRO is fully compatible with Intel ATX 3.0 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

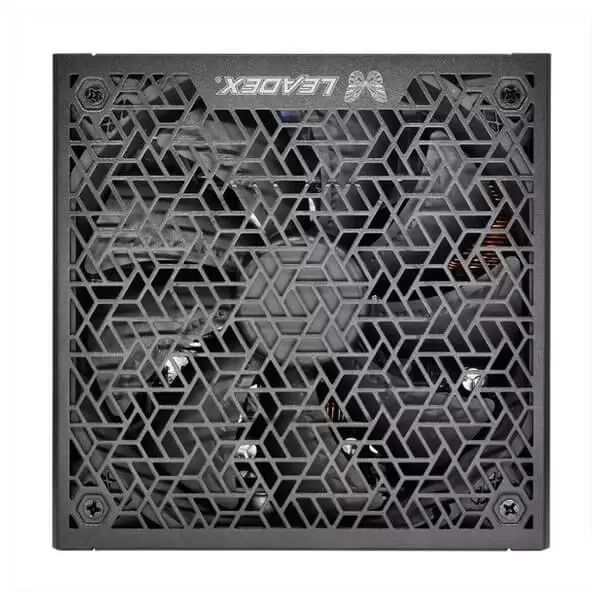

- 140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
- Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.

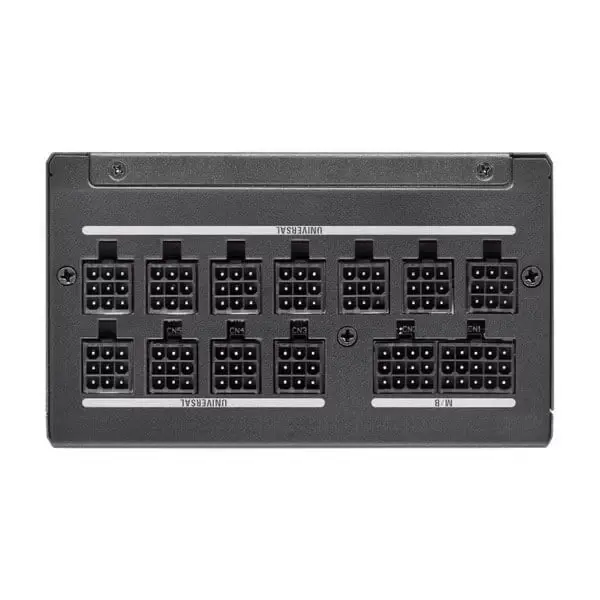

- New patented Universal SUPER CONNECTOR Universal Super Connectors with a patent allows you to plug CPU, PCI-E and peripherals freely in any of the 9pin socket provided.
- New patented technology of Buckle (20+4) Pin connector
- Innovative Design for gaming System & PSU protection
1. DC output +12V/+5V/+3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple
- ECO-design
1. Auto & ECO Fan Control
2. High efficiency on all rails, including 5VSB
- 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
- 80 PLUS Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
- 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
- Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
- Comply With ATX 12V v3.0, EPS 12V v2.92 Specification.
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
- Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
- Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card
- More than 2,000 times On/Off test
- Lead-free Green Materials with RoHS / WEEE Compliance
- Perfect For Professional & High Performance Gaming System
- PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.
Specification:
Model | LEADEX VII Platinum PRO 850W ATX 3.0 |
P/N no | SF-850F14XP |
Transform Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency |
Cybernetics Certified | Efficiency: Platinum / Efficiency 230V: Platinum |
Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.0 |
AC Input | Frequency | 100V-240V | 60 / 50Hz , Full Range APFC |
Fan Size | 14cm FDB FAN |
Dimension | 150mm(L) x 150mm(W) x 86mm(H) |
Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
Temperature | Passed 50℃ Hot Testing |
Cable Wires | 1 x 20+4 Pin (600mm)
2 x 8(4+4) Pin CPU (700mm) 3 x PCI 6+2 Pin (700mm) 3 x 4 SATA (550+130+130+130mm) 1 x 4 Molex (550+150+150+150mm) 1 x PCIe 12+4 Pin (700mm) |
Warranty | 10 Years |
Note | *** Images are for Representation purposes only
*** Features, Price, Specifications are subject to change without notice. |
