Description

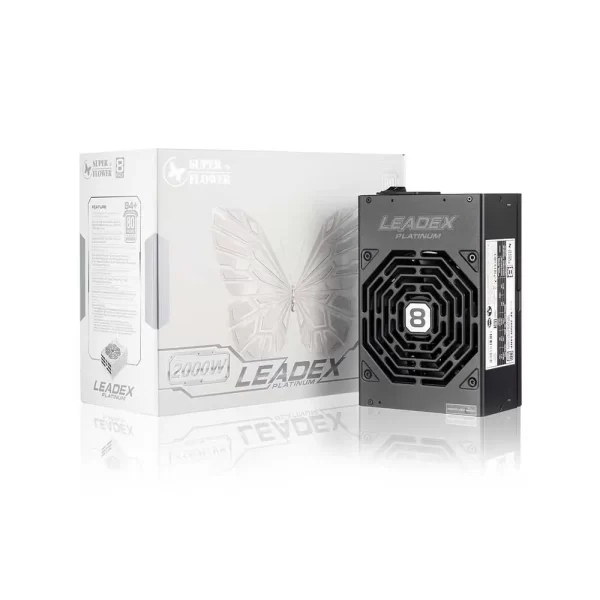

LAEDEX Platinum series PSU are 80+ Platinum certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

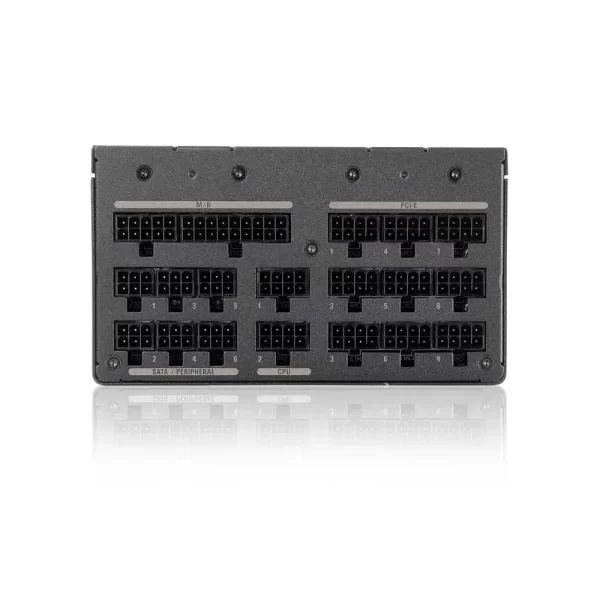

- 100% Full Modular Cabling Design For Easy Cable Management
- 80 PLUS® Platinum 230V EU Certified,92% 94% 90% Efficiency At 20% 50% 100% Rated Load.
- Single Voltage Design 230V (Active PFC).
- Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection.
- Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
- More than 2,000 times On/Off test
- Unleaded Green Materials with RoHS/WEEE Compliance
- Perfect For Professional & High Performance Gaming System
- Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design
- Exclusive Patents
- Dual Voltage Circuit with IntelligenceThermal Control System (Taiwan Patent NO.:381102 (China,U.S.A,Germany,Japan patent applied))
- Multi Patenet Pending Extreme High Efficiency Main Transformer
Taiwan Invention Patent no: 103127942 (Patent Pending)
Taiwan Utility Model Patent no: 103214502 (Patent Pending)
China Invention Patent no: 201410414373.3 (Patent Pending)
China Utility Model Patent no: 201420474128.7 (Patent Pending)
Germany, United Kingdom, USA, Korea, Japan Patent Applied
This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
- Industrial grade server system.
- Special ultra-high load operation system (for example: bitcoin mining machine… etc.)
- Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
Model No. |
SF-2000F14HP |
|
Wattage |
2000W |
|
80+ Efficiency |
92% 94% 90% Efficiency At 20% 50% 100% Rated Load |
|
Intel Power Design Guide |
V2.92 |
|
AC Input | Frequency |
Single Voltage 230V | 50 / 60HZ |
|
Fan Size |
140mm Two-Ball Bearing Fan |
|
Dimension |
220mm(L) x 150mm(W) x 86mm(H) |
|
Protection |
OVP / OCP / OPP / SCP / UVP / OTP / LVP / NLO / SIP |
|
Safety |
TÜV / CB / CE / EAC / RoHS / KCC /CQC |
|
Temprature |
Passed 50℃ Hot Testing |
|
Cable Spec |
||
20+4Pin |
Detachable Cables |
one cable(600mm) |
(4+4Pin) CPU |
two cables(750mm) |
|
PCI-E 6+2Pin |
four cables(750mm) |
|
SLI (2 x PCI 6+2Pin) |
five cables(750+150mm) |
|
4SATA |
four cables(550+100+100+100mm) |
|
3Molex |
two cables(550+100+100mm) |
|
Molex to FDD Adapter |
two cables(100mm) |
