Sale!

MSI PRO B760M-A WIFI DDR5 MOTHERBOARD (PRO-B760M-A-WIFI-DDR5)

Original price was: ₹16,950.00.Current price is: ₹14,850.00.

         Inclusive of all taxes

Competitive Pricing

Genuine Products

Secured Transactions

No Hidden Charges

In-city delivery in 2-4hrs

All India Delivery 3-5 days

Description

Msi Pro B760M-A Wifi Ddr5 Motherboard (PRO-B760M-A-WIFI-DDR5)

Features:

  • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification:

ModelPRO-B760M-A-WIFI-DDR5
ChipsetINTEL B760
CPU SupportSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
Memory4x DDR5, Maximum Memory Capacity 192GB
Memory Support 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard GraphicsSupport HDMI™ 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
2x HDMI™
2x DisplayPort
Expansion Slot2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
LANRealtek® RTL8125BG 2.5G LAN
Wireless Lan & BluetoothIntel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen1 Type C
LED Features4x EZ Debug LED

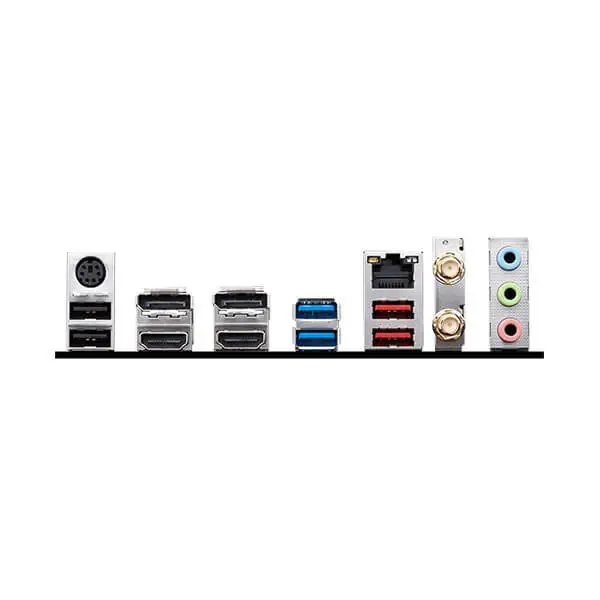

Back Panel Ports
  • Keyboard / Mouse
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • USB 2.0
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
Operating SystemSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB InfomATX
243.84mmx243.84mm
Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.

Additional information

Brand

Motherboard–Form–Factor

M-ATX

Motherboard-CPU-Platform

Intel

Socket

INTEL LGA1700

Max Memory

128 GB

Motherboard-Memory-Support

DDR5

Motherboard-Chipset

B760
