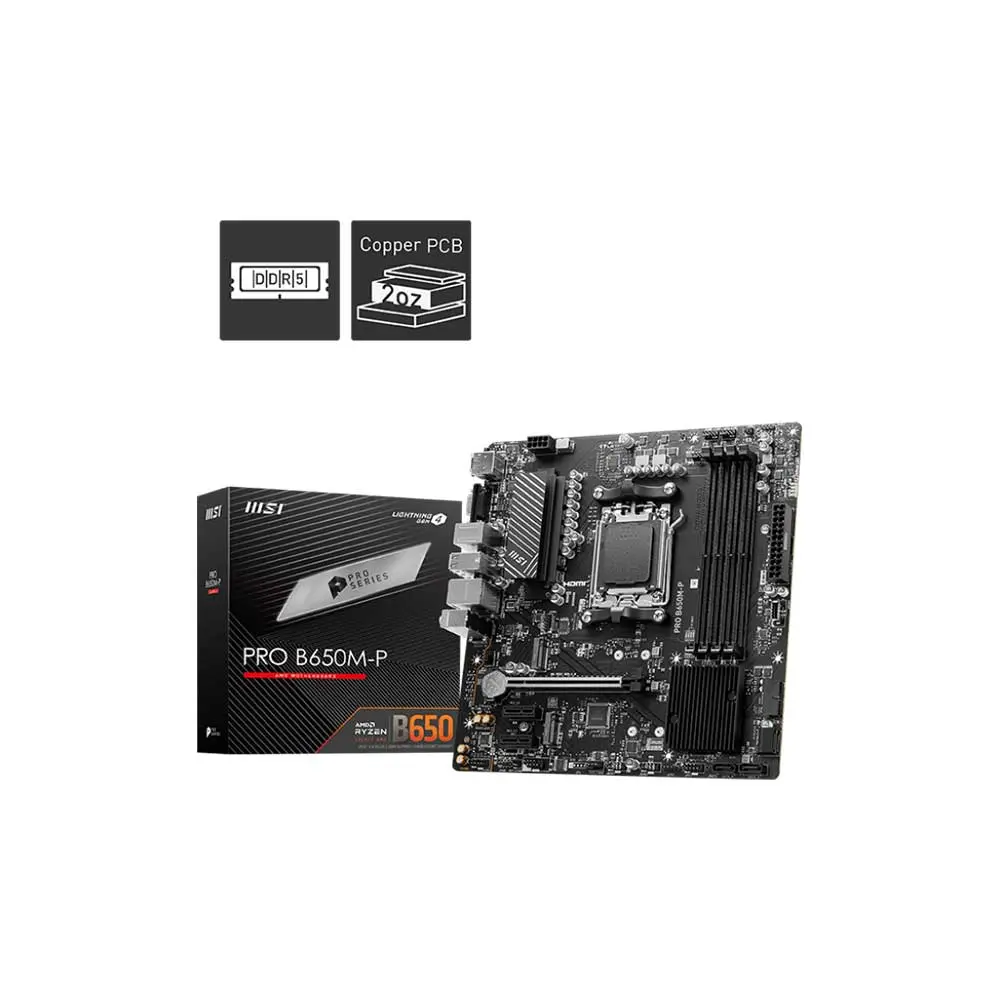

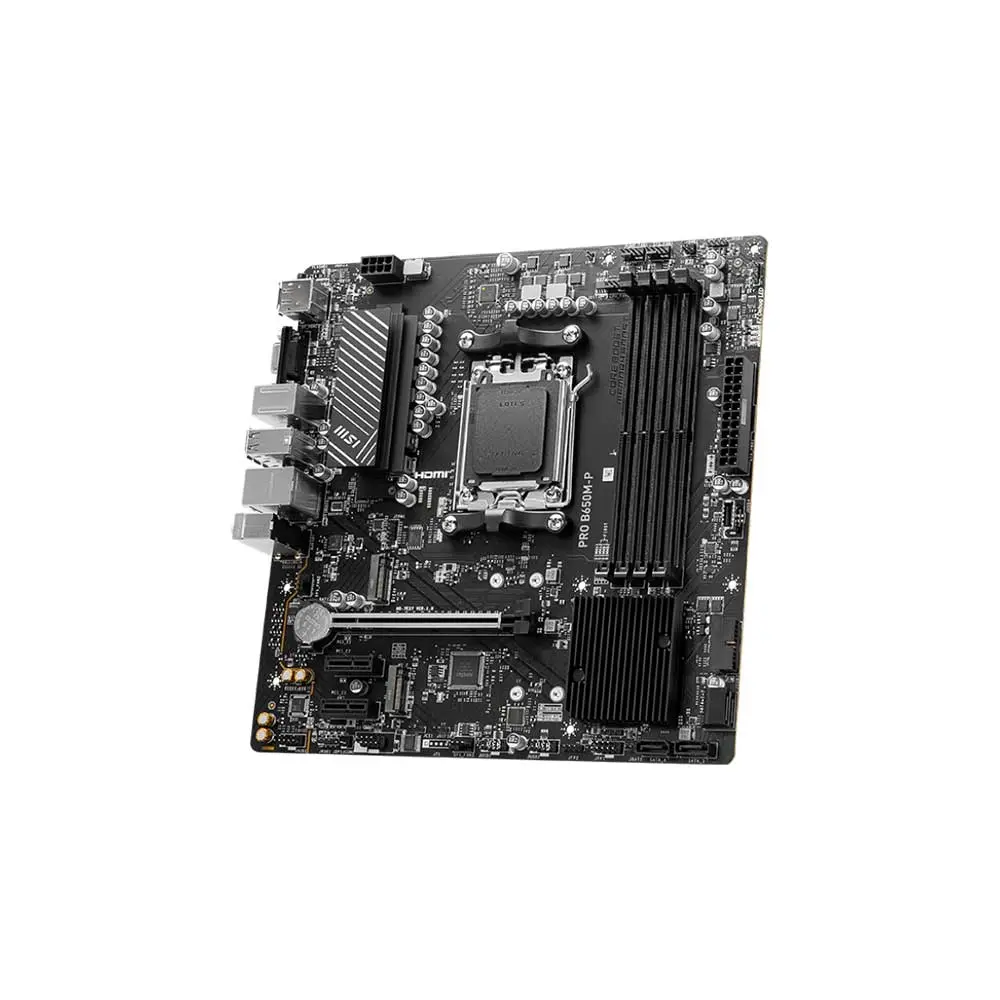

MSI PRO B650M-P AM5 MICRO ATX MOTHERBOARD (PRO-B650M-P)

10,800.00

         Inclusive of all taxes

Competitive Pricing

Genuine Products

Secured Transactions

No Hidden Charges

In-city delivery in 2-4hrs

All India Delivery 3-5 days

Description

Msi Pro B650M-P Am5 Micro Atx Motherboard (PRO-B650M-P)

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
ChipsetAMD B650
CPU SupportSupports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 1920×1200 60Hz*
Expansion Slot1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RaidSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
LANRealtek® 8125BG 2.5G LAN
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED Feature4x EZ Debug LED

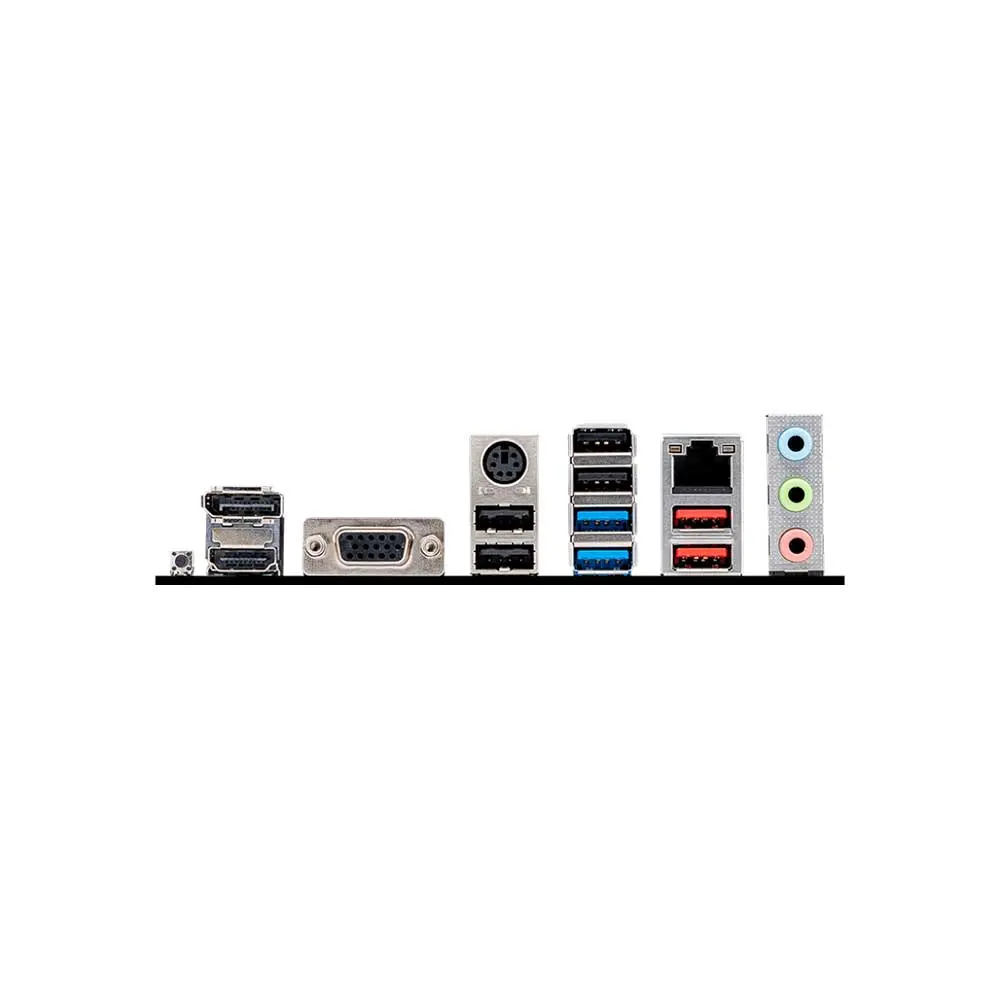

Back Panel Ports
  1. DisplayPort
  2. VGA
  3. Keyboard / Mouse
  4. USB 2.0
  5. 2.5G LAN
  6. Audio connectors
  7. Flash BIOS Button
  8. HDMI™
  9. USB 2.0
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. USB 3.2 Gen 2 10Gbps (Type-A)
Operating SystemSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB DimensionmATX
243.84mmx243.84mm
Warranty3 Years
Note****Prices, Specifications & Features are subject to change without notice

Additional information

Brand

Motherboard–Form–Factor

M-ATX

Motherboard-CPU-Platform

AMD

Socket

AMD AM5

Max Memory

192 GB

Motherboard-Memory-Support

DDR5

Motherboard-Chipset

B650
