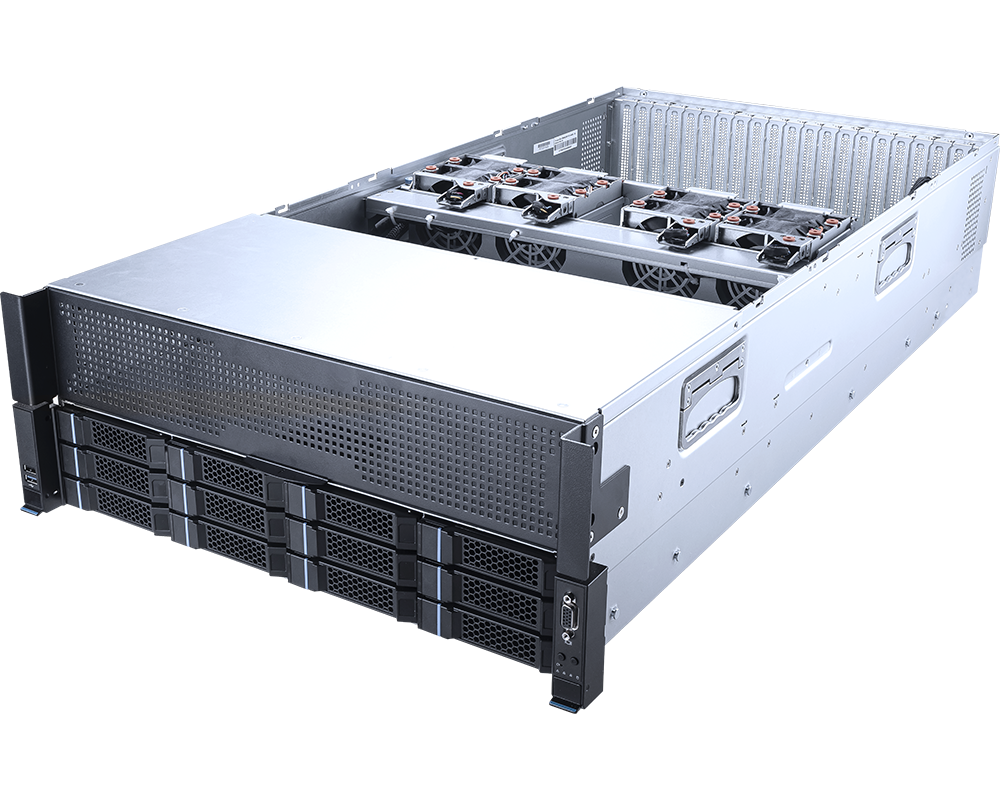

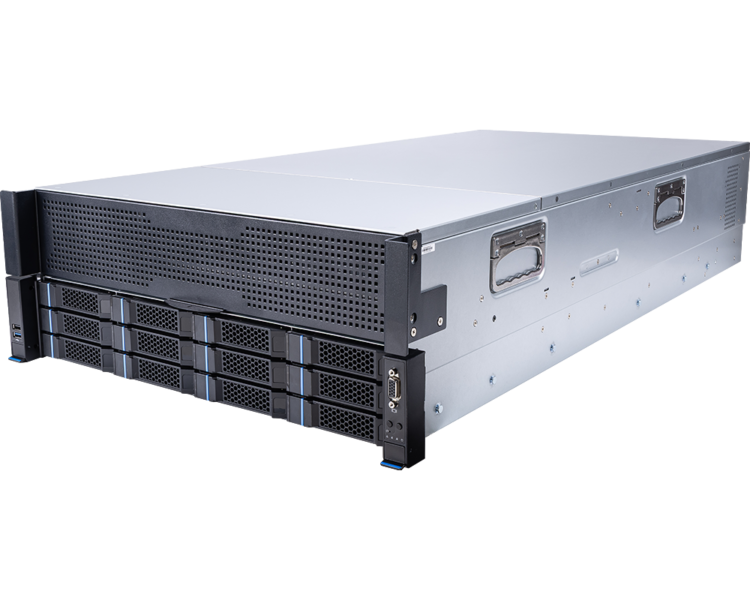

MSI G4201RAS10U2-P4-Pt is a 4U high-density 8-GPU server barebone designed for AI training, machine learning, HPC, and visual computing workloads. It supports dual 4th/5th Gen Intel Xeon Scalable processors, up to 32 DDR5 RDIMM slots, 8 PCIe 4.0 x16 GPU slots, hot-swap NVMe/SATA storage, and redundant 2000W 80 PLUS Platinum power supplies.
Specifications
| Form Factor | 4U |
| Dimensions | 438mm(17.2″)W x176mm(6.9″)Hx 897mm(35.3″)D |
| Processor | Dual 4th/5th Generation Intel® Xeon® Scalable Processors, TDP up to 350W |
| Socket | (2)Intel LGA4677 sockets |
| Chipset | Intel® C741 |
| Memory | (32) DDR5 DIMM Slots, 2DPC, RDIMM/3DS – Max. Frequency 5th Gen Intel® Xeon®: 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: 4800 MT/s (1DPC), 4400 MT/s (2DPC) – Max Capacity per DIMM: 256GB |
| Drive Bays | (12) Hot-swap 3.5″/2.5″ drive bays support (2) U.2 PCIe 4.0 NVMe + (10) SATA 3.0 |
| Internal Storage | (2) M.2 2280/22110 PCIe 3.0 x2 from PCH |
| Expansion Slots | (8) PCIe 4.0 x16 FHFL slots, supporting NVIDIA RTX 6000 Ada Generation Graphics Card (4 from CPU0 & 4 from CPU1) (1) PCIe 4.0 x16 FHFL slot from CPU1 (1) PCIe 4.0 x8 FHFL slot from CPU0 * all slots are directly connected to CPU sockets, switchless topology |
| Networking | (1)1000Base-T Ethernet port (Intel® I210AT) |
| RAID | Intel® SATA RAID 0/1/10/5 integrated (1) VROC header for Intel® VROC key |

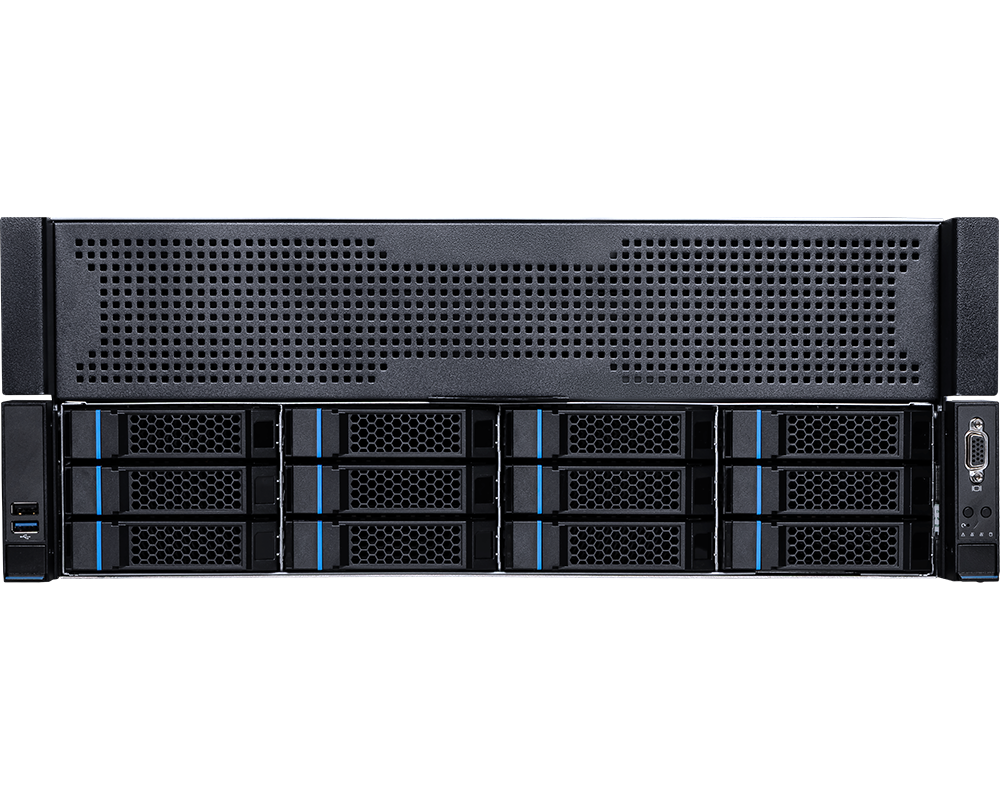

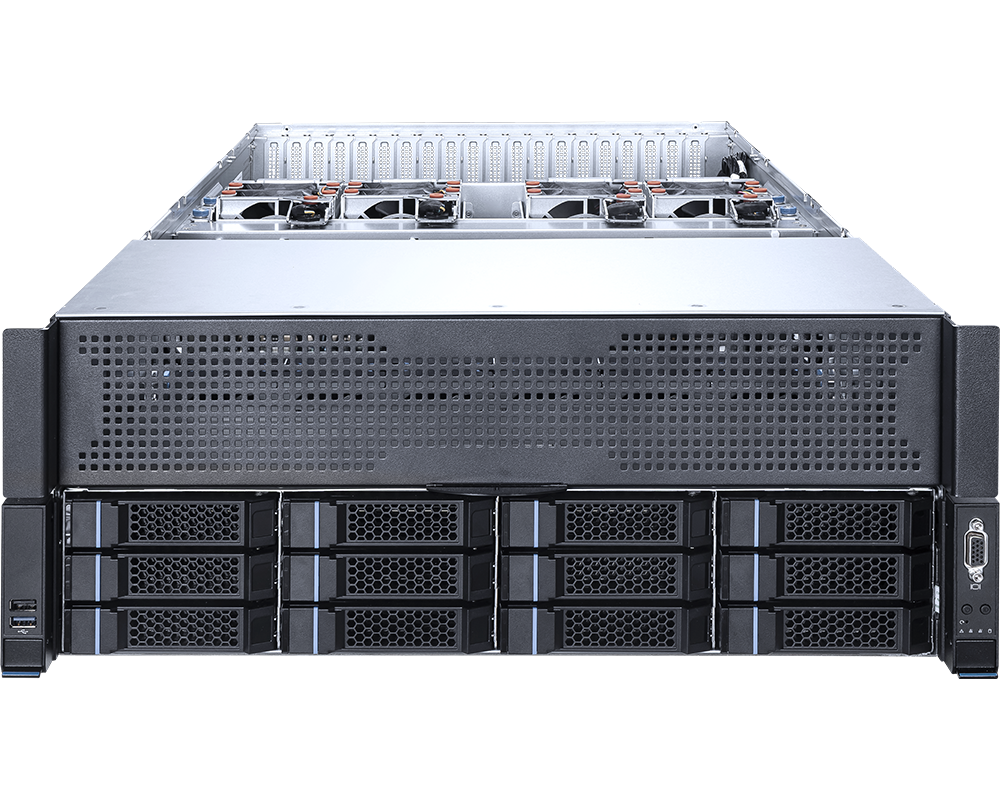

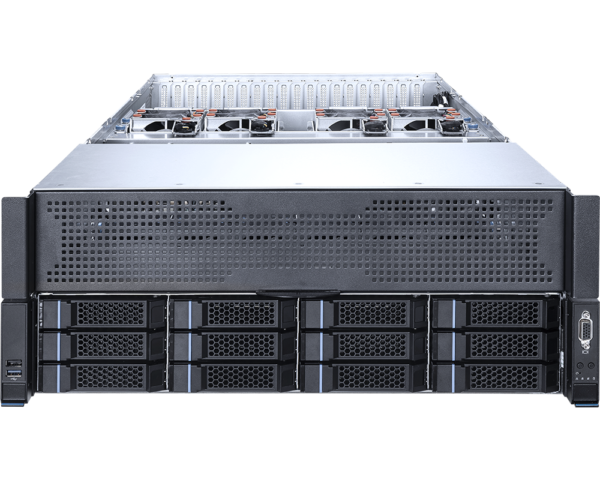

| Front I/O | (12) Hot-swap 3.5″/2.5″ drive bays (1) USB 3.2 Gen 1 Type-A Port (1) USB2.0 port (1) System Power LED Button (1) UID LED Button (1) Reset Button (4) Status LEDs : Fault/LAN/M.2 |

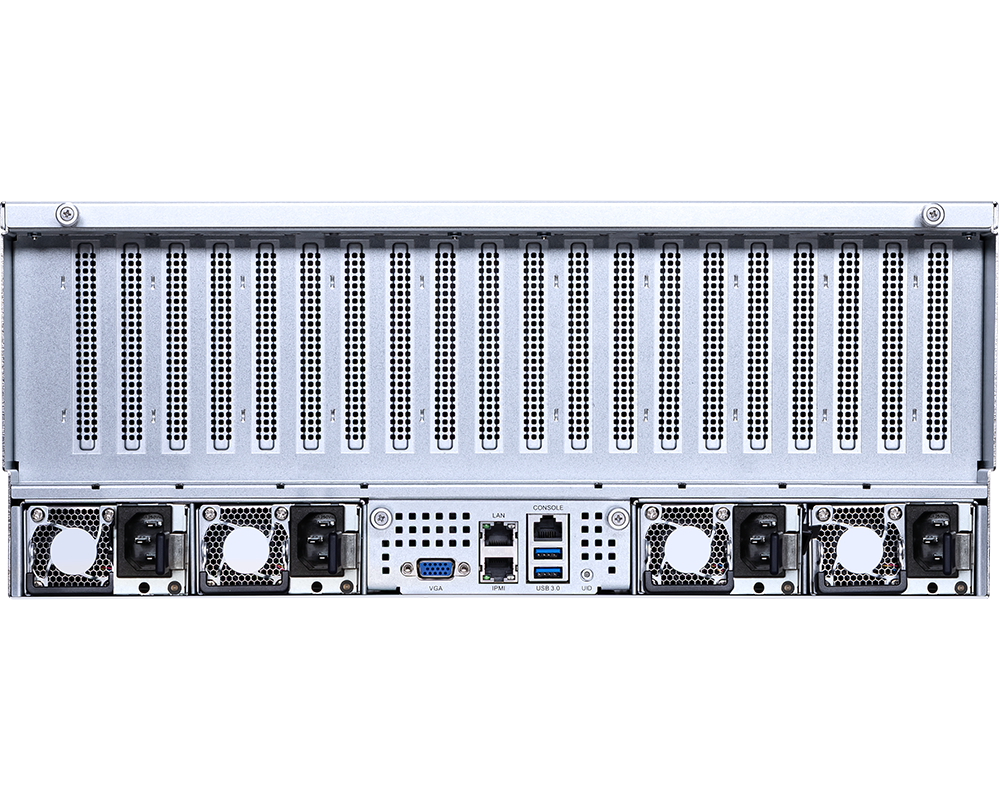

| Rear I/O | (1) 1000Base-T Dedicated Server Management Port (1) 1000Base-T Ethernet Port (2) USB 3.2 Gen 1 Type-A Port (1) VGA D-Sub Port (1) COM RJ45 Port |
| Security | TPM2.0 module supported (optional) |
| Server Management | ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API (1) 1000Base-T Dedicated Server Management Port Dual BIOS and BMC |
| OS support | Windows 2025 Ubuntu 24.04 Red Hat 9.4 |
| Environment | System Operating Temperature: 0°C ~ 35°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Power Supply | (3+1) Redundant 2000W CRPS 80PLUS Platinum
Dimension (WxHxL): 73.5 x 40 x 185 mm AC Input: 100-127Vac, 12A, 47-63Hz *C13 power cords are required and will be offered as optional accessories. |
| Cooling | (6) 6038 Hot-swap fans (8) 8038 Internal fans (4) 8038 rear Hot-swap fans |
| Certification | CE, FCC (Class A) |
| Package Contents | (1) Barebone (1) Quick guide (1) Slide rail Kit (2) CPU air cooling modules (4) Power supplies(inside system) (8) Power cable PCIe CEM5(12VHPWR) 16-pin to 2x CPU 8-pin |
| Parts List | (1) Quick guide: G52-S3702X1-Q13 (1) Slide rail Kit: E22-S370230-K32 (4) Power supply: S93-0913131-S14 (2) EVAC air cooling modules: E31-0807740-A87 (4) Power cables: K33-3001029-I45 for CN (8) Power cable adapters for GPGPU: K1G-3013001-V03 |
| Optional parts | TPM2.0 module: TPM20-IR Power cable CPU(EPS12V) 8-pin: K10-3008304-V03 Power cords: -C13 1.8m 125V/15A(US, NEMA 5-15P): K33-3001359-I45 -C13 1.8m 250V/15A(US, NEMA 6-15P): K33-3001365-I45 -C13 1.8m 250V/16A(EU): K33-3001005-I45 -C13 1.8m 250V/10A(CN): K33-3001029-I45 -C13 1.8m 125V/13A(JP): K33-3001346-I45 -C13 to C14 1.8m 250V/15A(US): K33-3001360-I45 -C13 to C14 1.8m 250V/10A(EU): K33-3001424-I45 |
Product Description
High-Density 8-GPU AI Server Platform
The MSI G4201RAS10U2-P4-Pt is a powerful 4U rackmount GPU server barebone engineered for demanding AI training, deep learning, machine learning, HPC, and visual computing environments. The platform supports dual 4th and 5th Generation Intel Xeon Scalable processors with up to 350W TDP per CPU, delivering exceptional compute performance for enterprise and research workloads.
Optimized for NVIDIA RTX 6000 Ada & L40S
With 8 PCIe 4.0 x16 double-wide GPU slots, the server is optimized for NVIDIA RTX 6000 Ada Generation and NVIDIA L40S PCIe accelerators. A switchless topology directly connects all PCIe slots to the CPU sockets, ensuring maximum bandwidth and low-latency GPU communication for large-scale AI models and parallel computing tasks.
Massive DDR5 Memory Capacity
The system features 32 DDR5 RDIMM / 3DS-RDIMM slots across 16 memory channels and supports speeds of up to 5600 MT/s. This enables high memory bandwidth and large memory capacity, making the platform ideal for memory-intensive AI datasets, simulation workloads, and virtualization environments.
| Component | Details |
| Model | MSI G4201RAS10U2-P4-Pt |
| Form Factor | 4U Rackmount |
| Processor Support | Dual 4th/5th Gen Intel Xeon Scalable |
| Socket | 2 × LGA4677 (Socket E) |
| Chipset | Intel C741 |
| Memory Slots | 32 × DDR5 RDIMM / 3DS-RDIMM |
| Memory Speed | Up to 5600 MT/s |
| GPU Slots | 8 × PCIe 4.0 x16 FHFL (double-wide) |
| Additional PCIe | 1 × PCIe 4.0 x16, 1 × PCIe 4.0 x8 |
| Supported GPUs | NVIDIA RTX 6000 Ada / L40S PCIe |
| Drive Bays | 12 × Hot-swap 2.5\” / 3.5\” bays |
| NVMe Support | 2 × U.2 PCIe 4.0 NVMe |
| SATA Support | 10 × SATA 3.0 |
| Internal Storage | 2 × M.2 PCIe 3.0 x2 (2280/22110) |
| Networking | 1 × 1GbE RJ45 (Intel I210-AT) |
| Management | ASPEED AST2600 BMC with IPMI & Redfish |
| Power Supply | (3+1) Redundant 2000W CRPS, 80 PLUS Platinum |
| Dimensions | 438 × 176 × 897 mm |
| Applications | AI Training, AI Inference, HPC, Visual Computing |
