Description

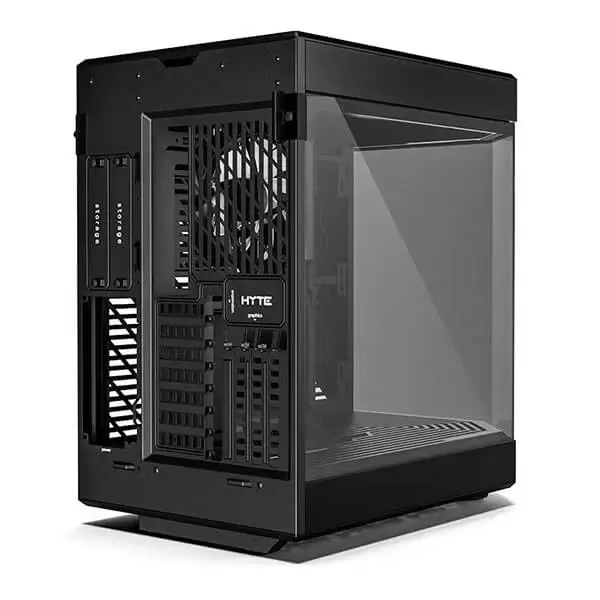

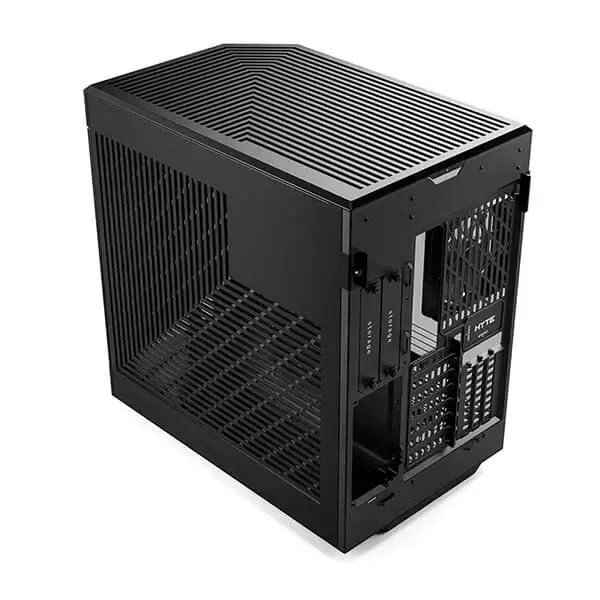

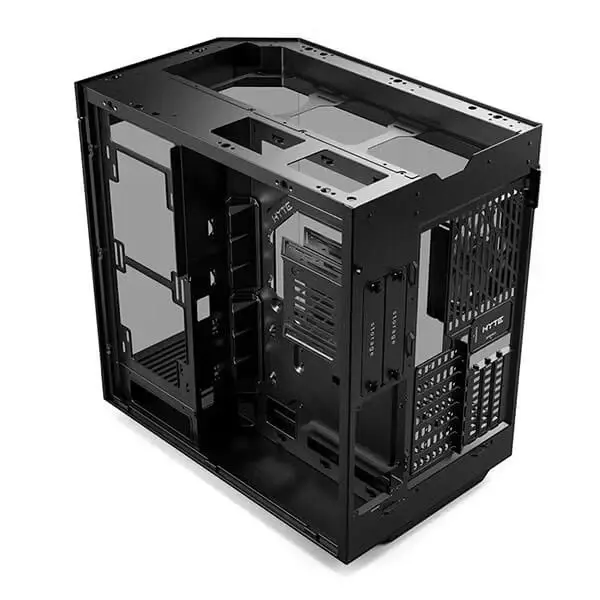

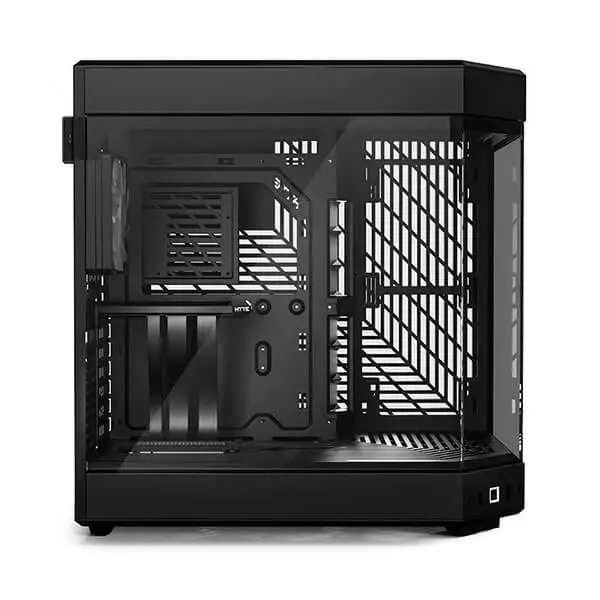

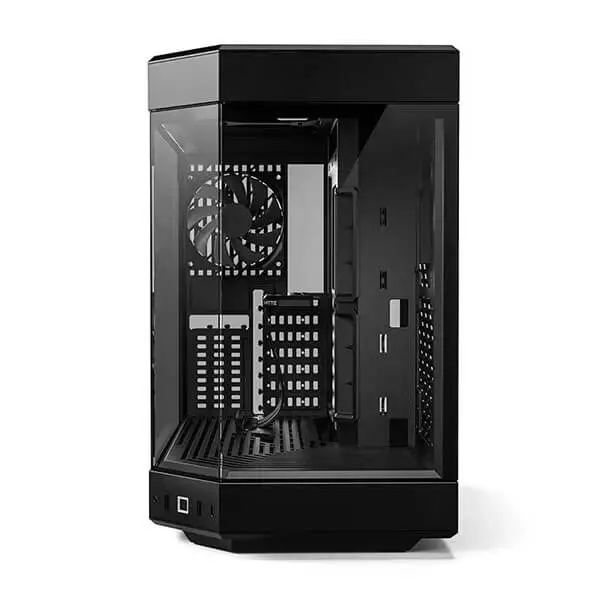

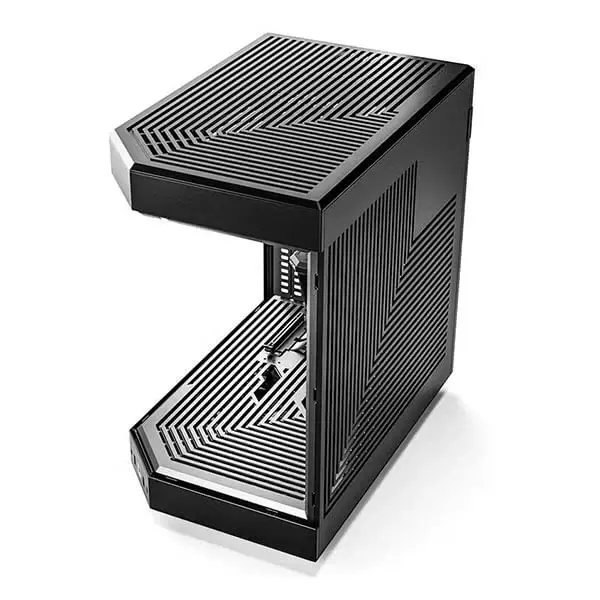

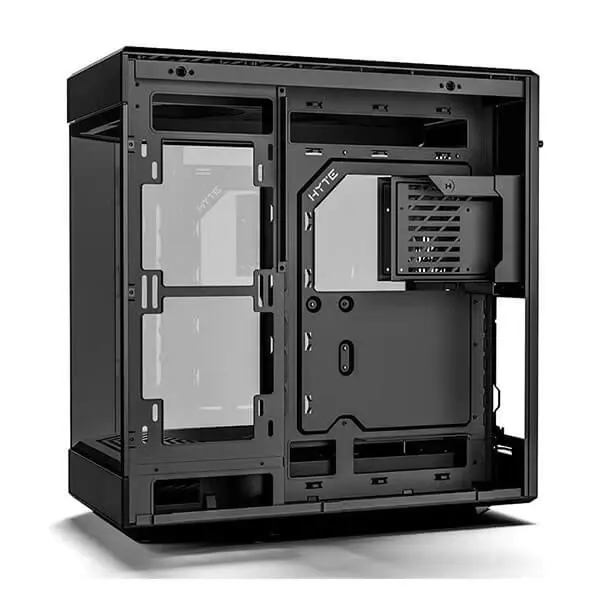

Hyte Y60 is an ATX, mid tower, dual chamber modern aesthetic PC case with 3-piece panoramic tempered glass panel. In this pc cabinet you can place the GPU vertically and connect with PCIe Riser cables. The case also comes with 3 pre installed fans.
Features:
Panoramic Views
No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.
Included PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.
Antechamber Construction
Segment cables from thermal components and turn your PC into a work of art.
Cold Floor Cooling
Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.
Included Fans
The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.
Specifications:
Model: | CS-HYTE-Y60-B |
Colour: | Black |
Type: | Dual Chamber Mid-Tower ATX Case |
Volume: | 60L |
Case Dimensions: | 456mm (L) x 285mm (W) x 462mm (H) |
Case Weight: | 9.6 kg |
Case in Box Dimensions: | 535mm (L) x 372mm (W )x 540mm (H) |
Case in Box Weight: | 11.3 kg |
Case Materials: | Tempered Glass, Steel, ABS |
Motherboard Support: | EATX, ATX, mATX, ITX |
Power Supply: | ATX up to 235mm in length |
Video Card Max Dimensions: | 375mm length, 75mm width (60mm or less recommended for best cooling) |
Fan Support (Side): | 2x 120/140mm |
Fan Support (Top): | 3x 120mm |
Fan Support (Rear): | 1x 120mm (1x 120mm, 1300 RPM included) |
Fan Support (Bottom): | 2x 120mm/140mm (2x 120mm, 1300 RPM included) |
Radiator Support (Side): | 120, 140, 240, 280mm up to 150mm thick |
Radiator Support (Top): | 120, 240, 360mm up to 30mm thick |
Radiator Support (Rear): | 120mm |
CPU Cooler Height: | 160mm* * When using an air cooler rather than liquid cooler, HYTE recommends the installation of 2 additional intake fans (not included) on the side mount of the Y60 for optimal airflow. |
Storage: | 2x 3.5″ HDD or 4x 2.5″ SSD |
Expansion Slots: | 3 + 7 half-height |
PCI Express Riser: | 4.0 x 16 (included) |
Front USB 3.0: | 2 |
Front USB 3.2 Gen 2 Type-C: | 1 |
Audio/Mic Jack: | 1 |
Dust Filters: | Bottom, Side, Top |
RGB Lighting: | None |
Warranty: | 2 years |
Note: | *** Features, Price, Specifications are subject to change without notice. *** Images are for representation purpose only |
