Cooler Master Elite Gold 850 80 Plus Gold 850W ATX 3.1 Fully Modular Power Supply – Black
- Supports ATX 3.1 and PCIe Gen 5.1 standards
- Ideal for RTX 50 GPUs
- Stable performance under high loads at up to 40°C
- Quiet rifle bearing fan for efficient cooling and low noise
- 850W output with 80 Plus Gold-certified efficiency
- Fully modular embossed cable design
- Reliable 10-year warranty
Specifications
| Product Name | ELITE GOLD 850 |
| Product Number | MPX-8505-AFAG-NBIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100 – 240V |
| Input Current | 6 ~ 12A |
| Input Frequency | 50 – 60Hz |
| Dimension (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120 mm |
| Fan Bearing | Rifle bearing |
| Efficiency | ≥ 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS GOLD |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0 ~ 40℃ |
| Power Good Signal | 100 – 150ms |
| Hold Up Time | ≥ 11ms @ 100% Load |
| MTBF | >100,000 hours @ 25℃ ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0 |

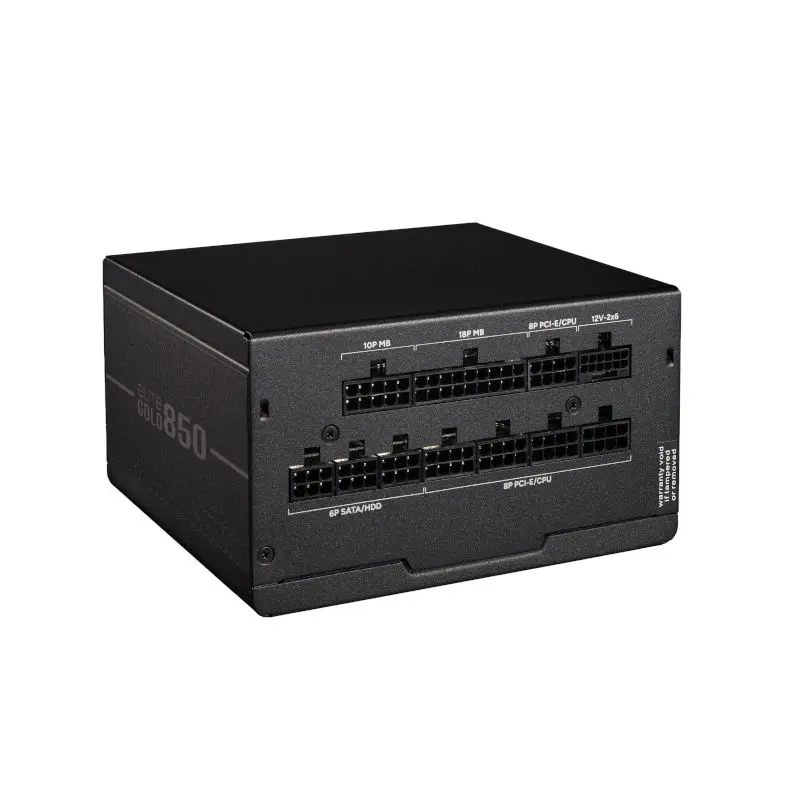

| Connectors | ATX 24 Pin: 1
EPS 4+4 Pin: 1 EPS 8 Pin: 1 PCI-e 6+2 Pin: 3 12+4 Pin: 1 SATA: 4 Peripheral 4 Pin: 2 |
| Warranty | 10 years |
| Note* | Price, feature and specifications are subject to change without notice. |
