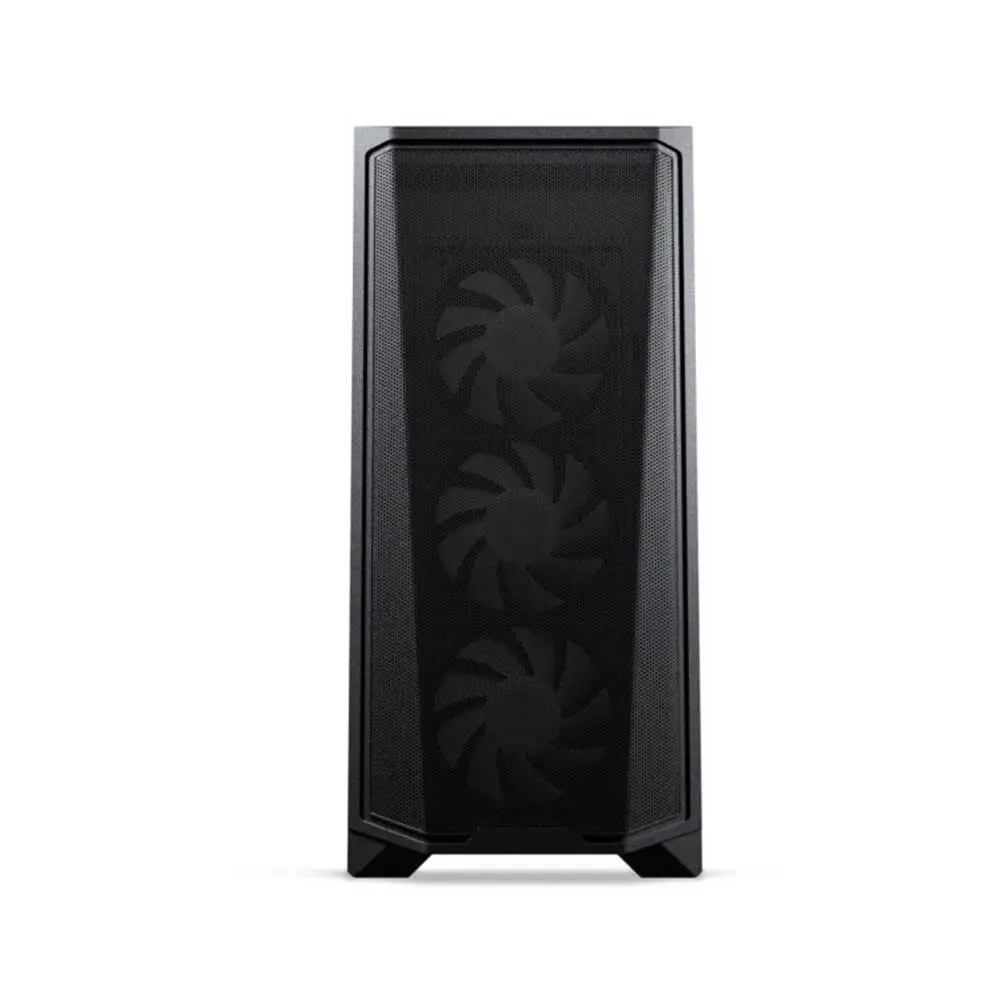

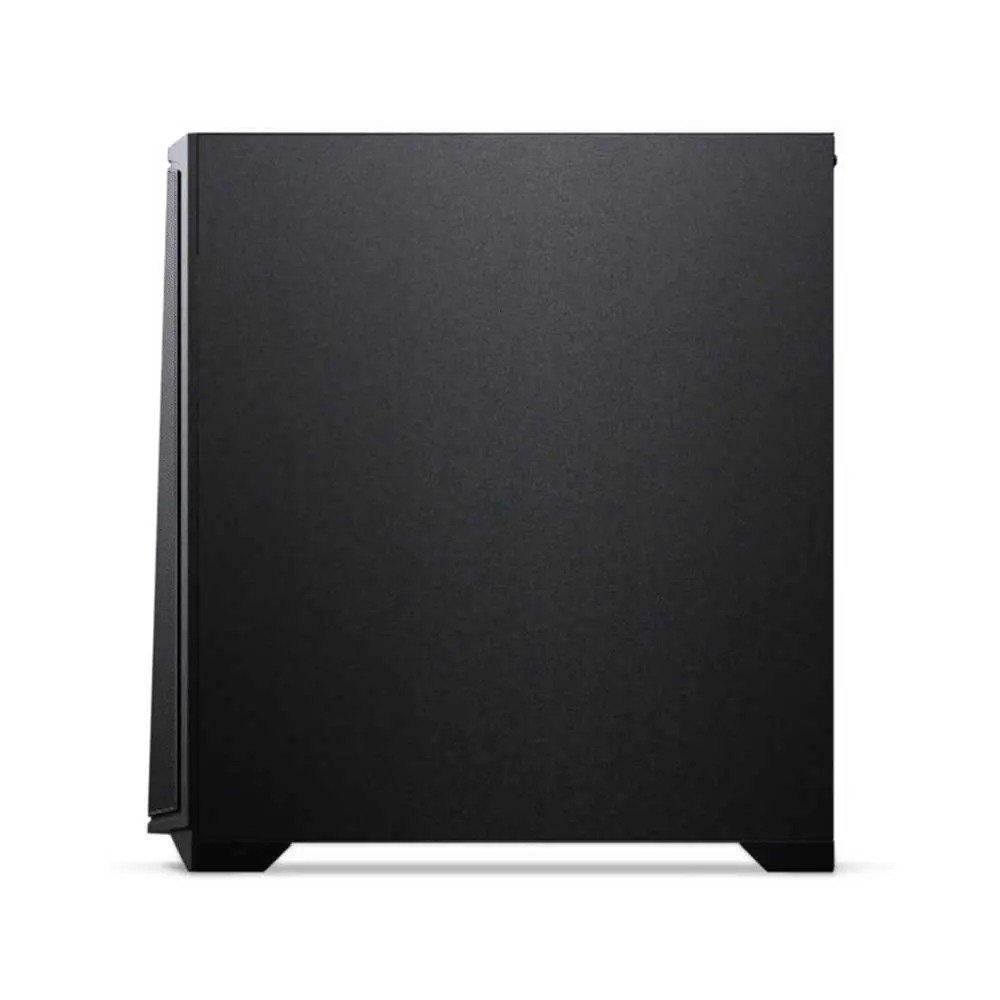

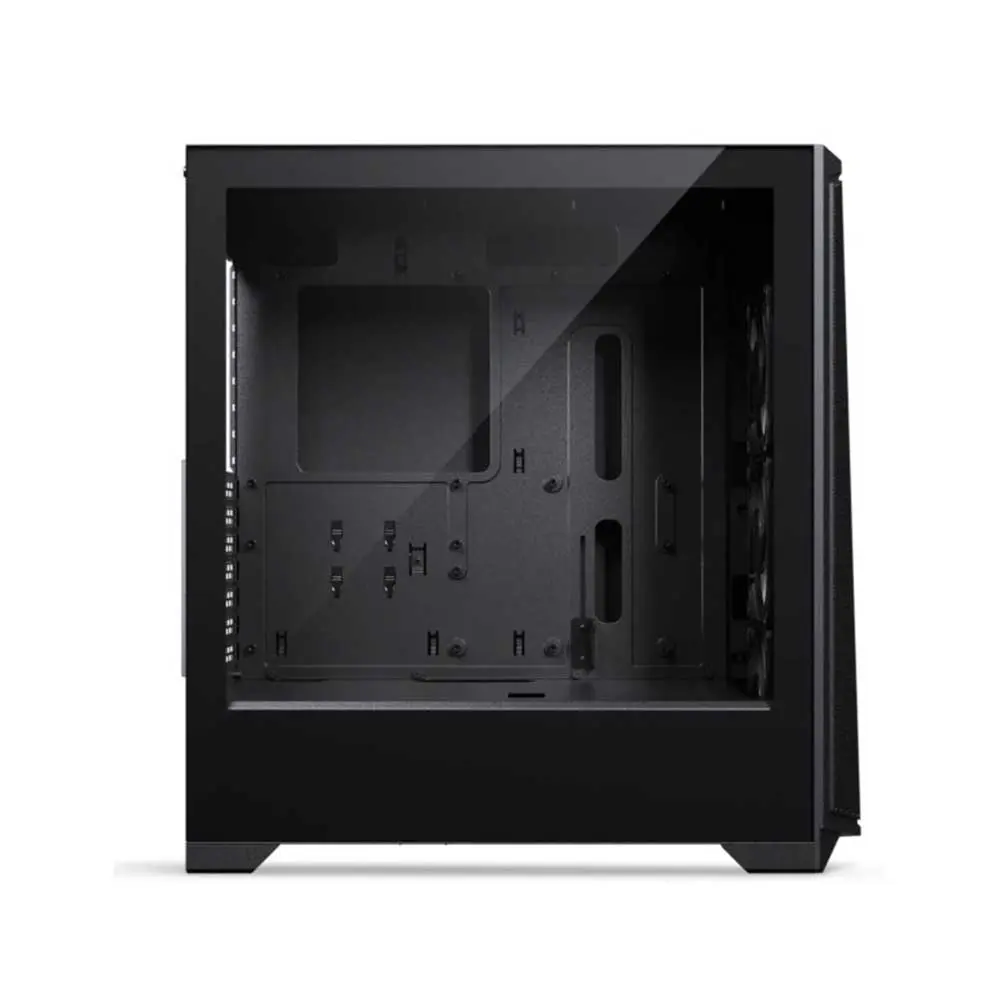

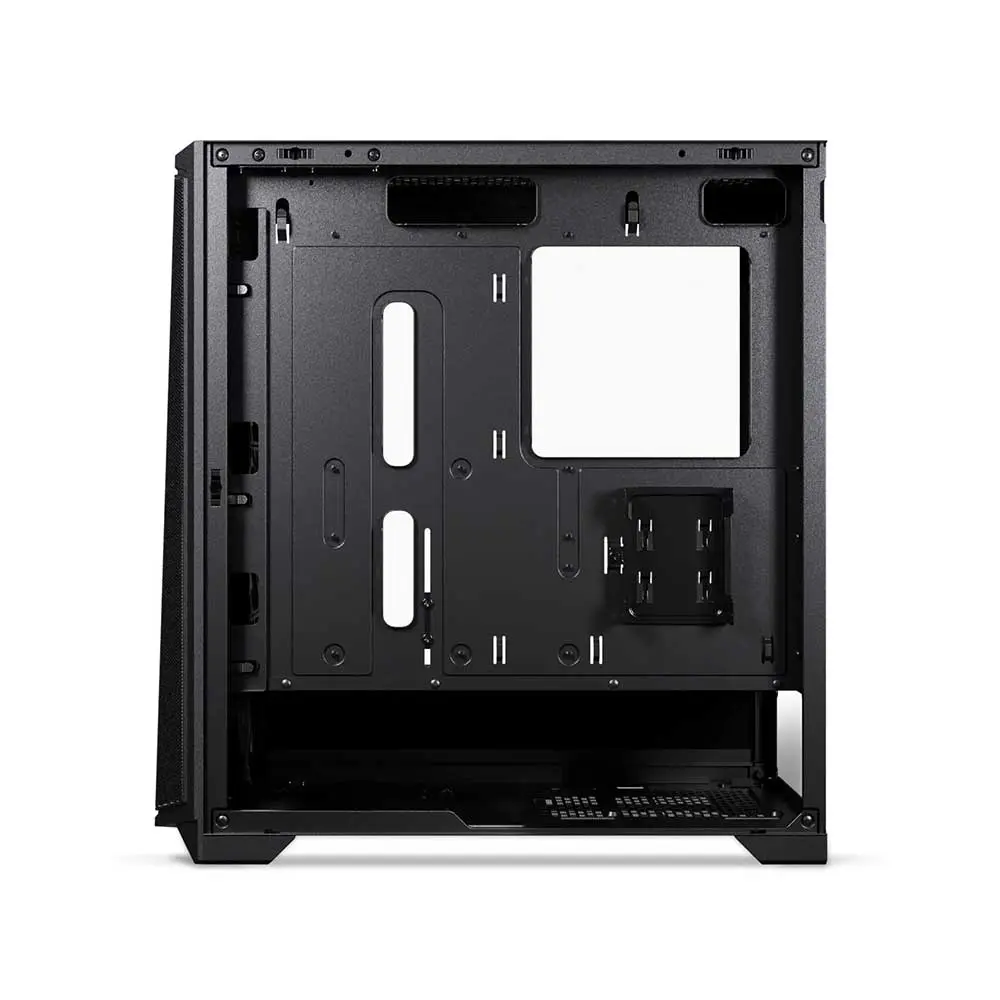

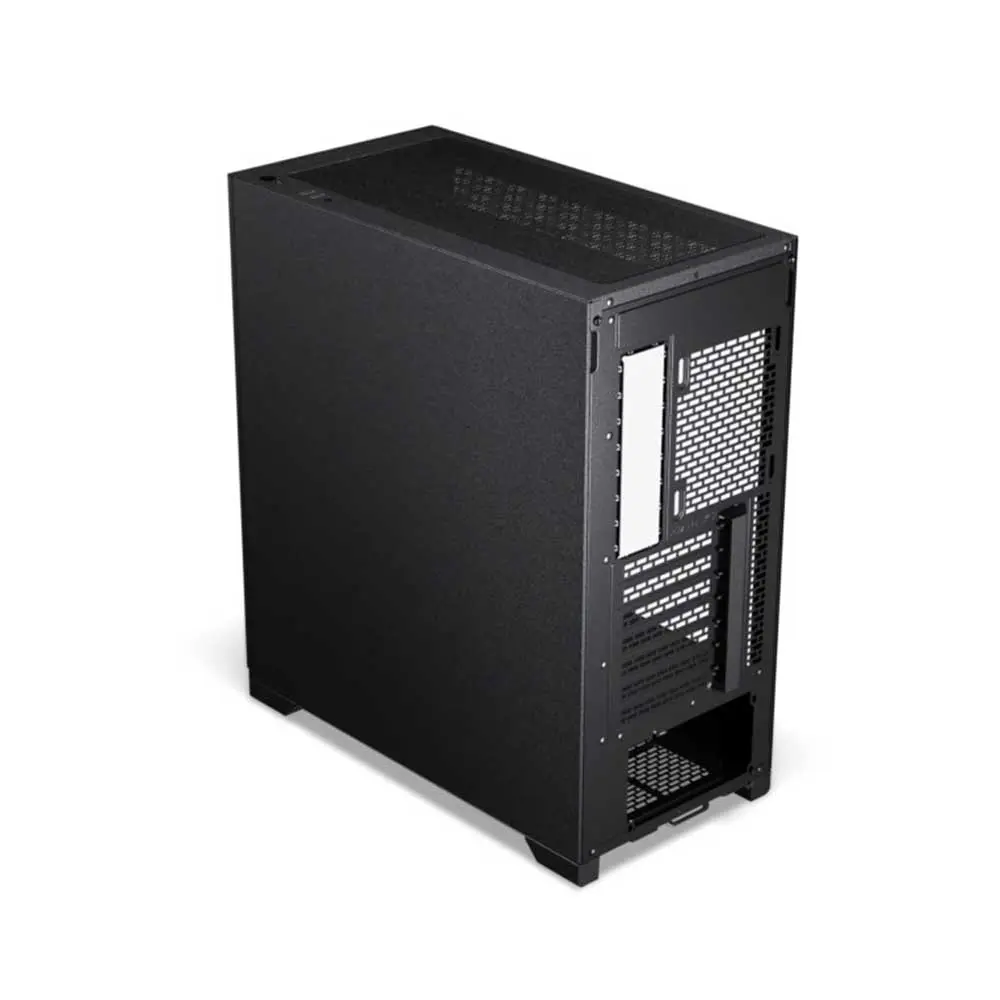

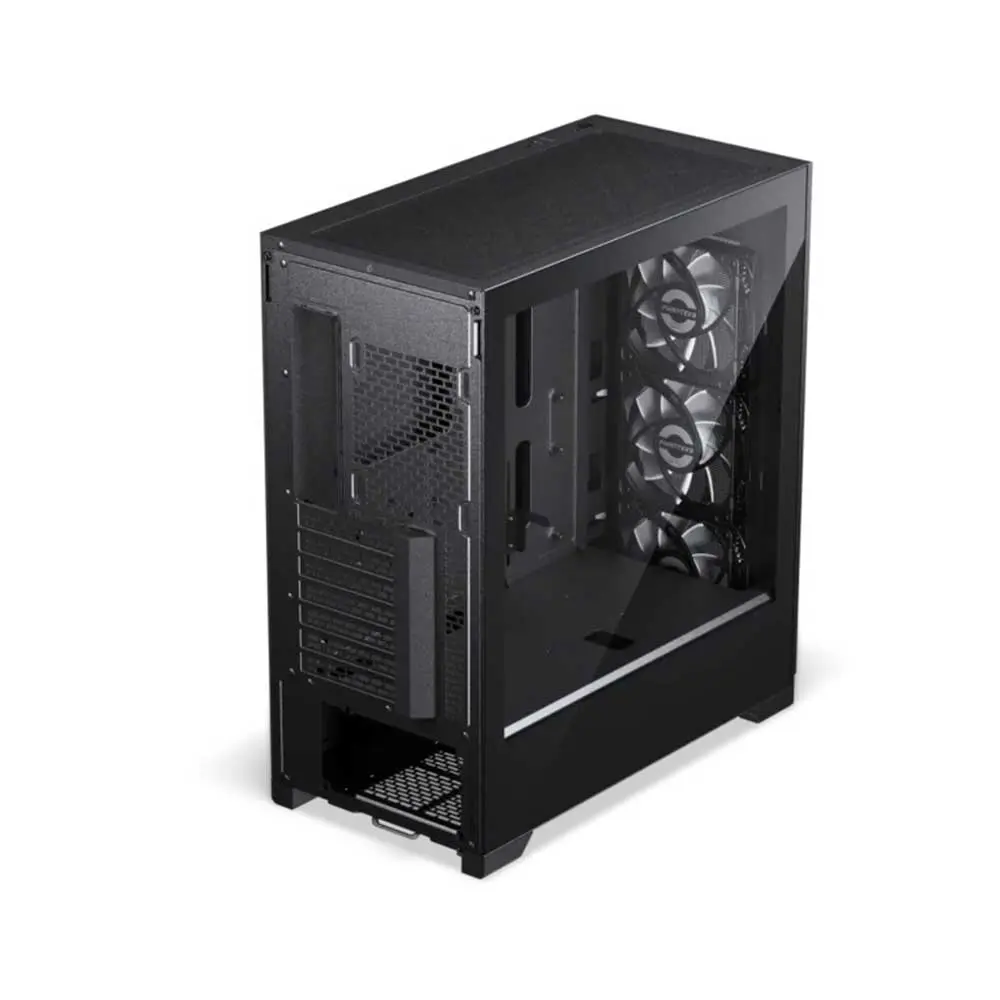

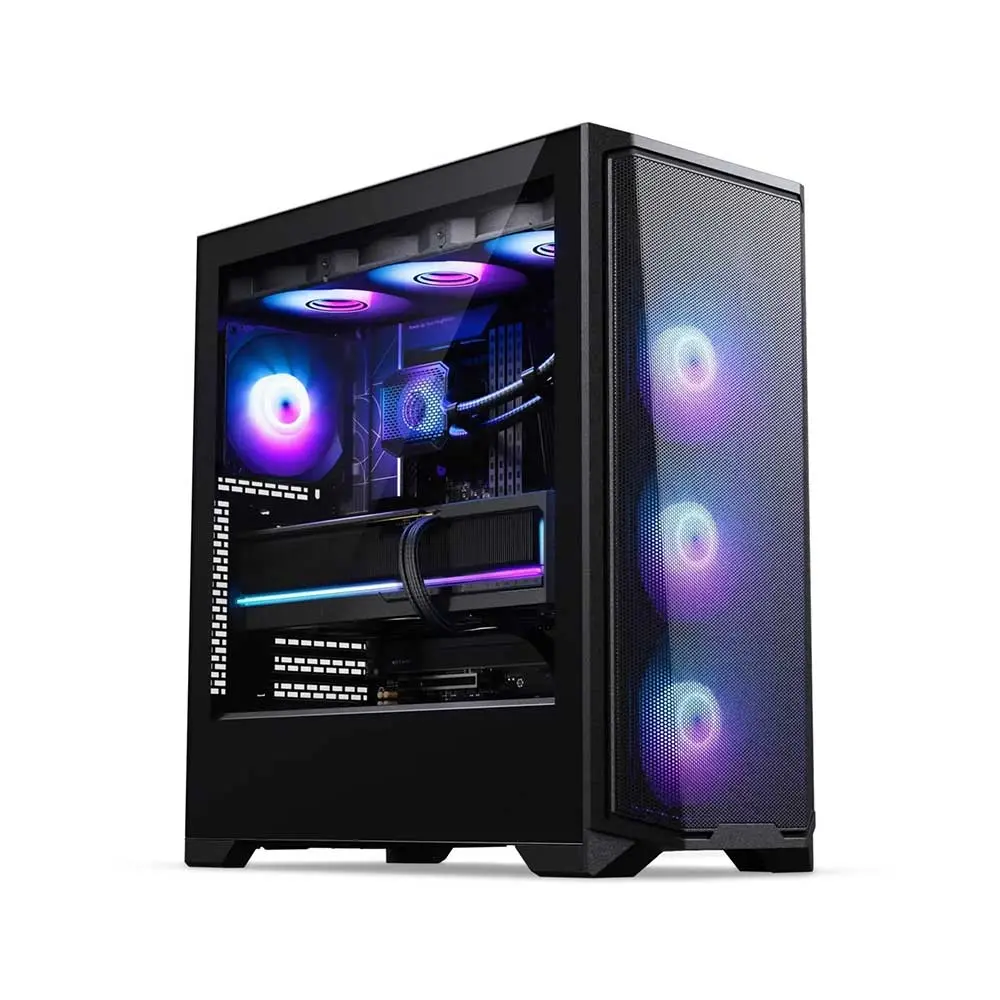

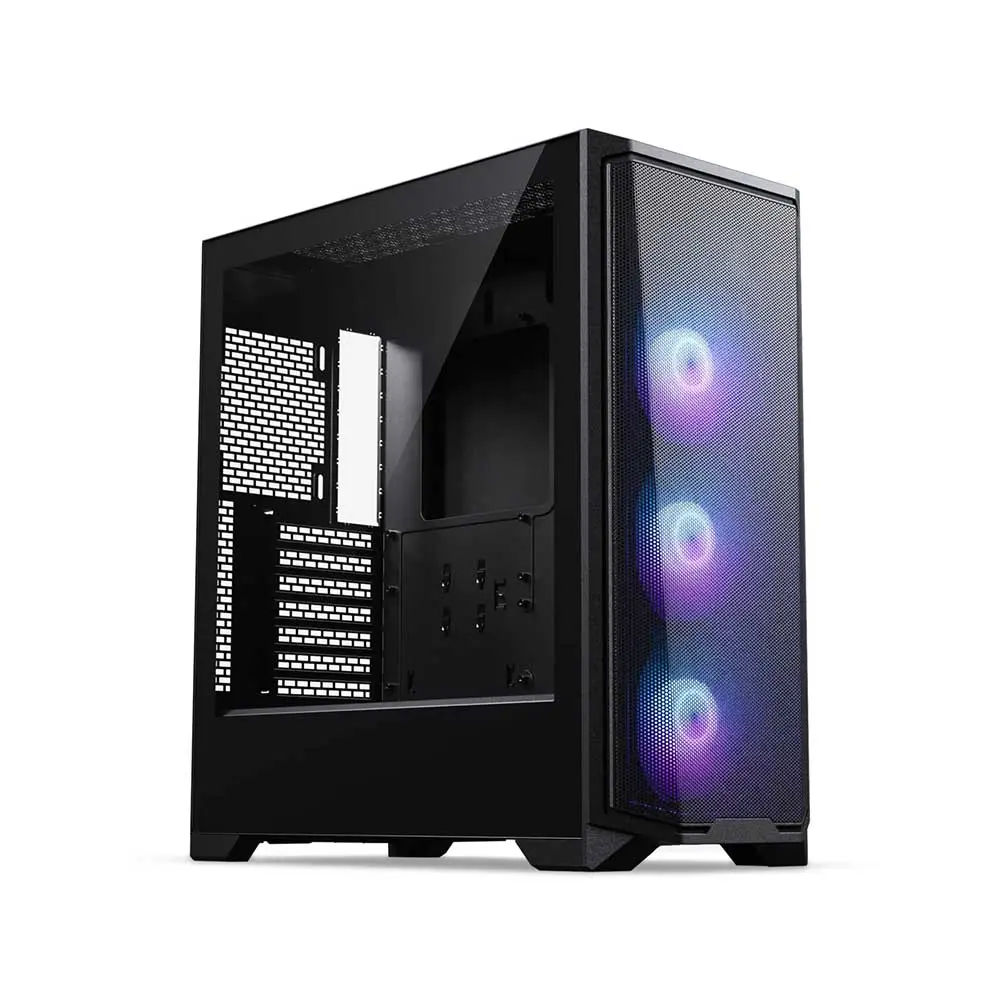

Phanteks Eclipse G370A High Airflow E-ATX Mid Tower Cabinet Black
The Phanteks Eclipse G370A is all about performance without frills. High airflow mesh throughout the chassis with 7x 120 mm fan positions and dedicated top 360 radiator clearance provides ample fresh airflow to unlock even the most demanding workstation-grade systems.
Extensive mainboard support up to and including SSI-EEB mainboards makes the G370A punch way above its weight.
| General | |
| Model No | PH-EC370A_DBK01 |
| UPC Code | 8.86523E+11 |
| Case Dimensions | 465 x 476 x 220 mm | 18.30 x 18.74 x 8.66 in |
| Form Factor | Mid-Tower |
| Mainboard Support | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass window | ABS plastic |
| Color | Black |
| Expansion Slots | 7 |
| Vertical GPU Support | No |
| Internal 2.5″ Positions | 2 + 1x 3.5″ HDD |
| Internal 3.5″ Positions | 1 + 2x 2.5″ SSD |

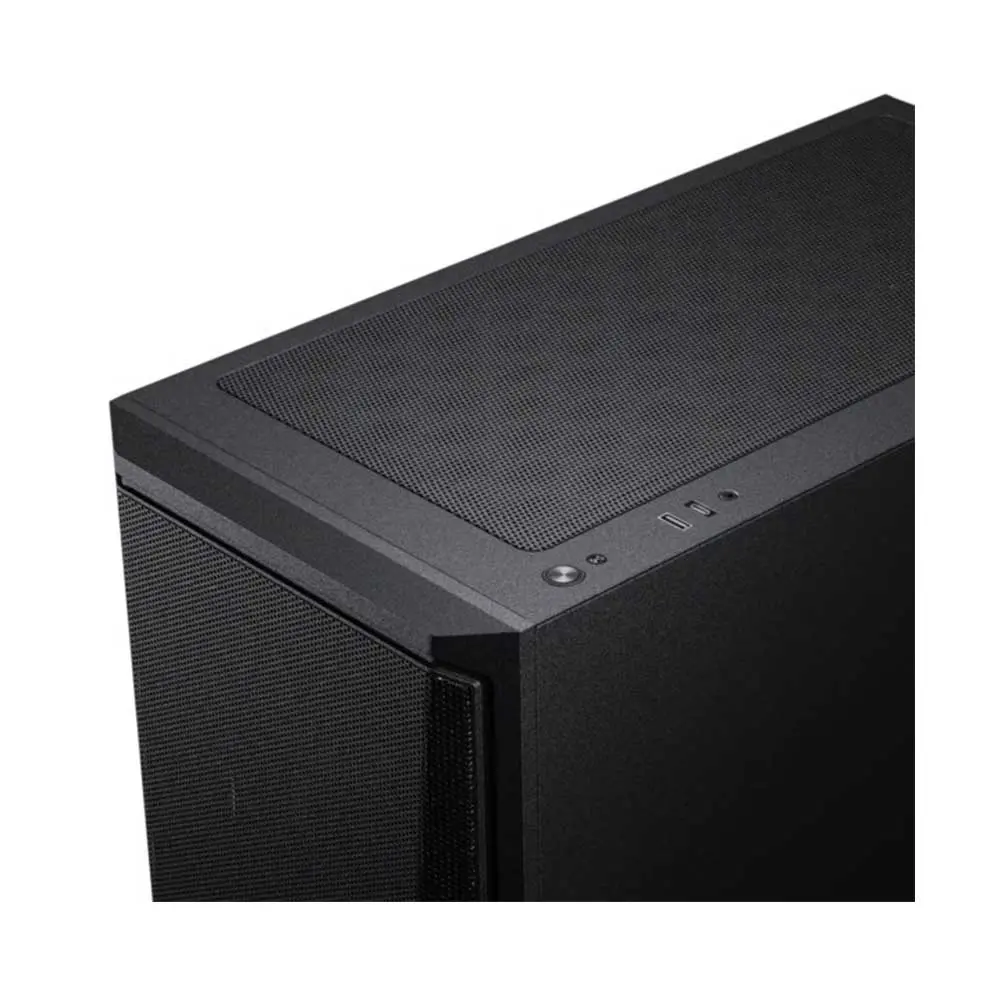

| Front I/O | 1x USB 3.0 1x USB-C 3.0 1x Microphone | Headphone combo Power button Reset buttonFans 120 | 14 |
| Fans 120|140 | |
| Total Fans | 7 | – |
| Top | 3 | – |
| Front | 3 | – |
| Rear | 1 | – |
| Bottom | – | – |
| Radiator 120|140 | |
| Top | Max. 360 | – |
| Front | Max. 240 | – |
| Rear | – | – |
| Bottom | – | – |
| Clearance | |
| CPU Cooler Height | 170 mm | 6.69 in |
| GPU length | 375 mm | 14.76 in With front fans installed |
| GPU Width | 170 mm | 6.69 in |
| Power Supply | 200 mm | 7.87 in |
| Top 360 Radiator Length x Width x Height |
400 x 120 x 60 mm | 15.74 x 4.72 x 2.36 in |
| Extra | |
| Net Weight | 6.43 kg | 14.17 lbs |
| Gross Weight | 7.72 kg | 17.02 lbs |
| Accessories | 6x Zip ties 1x Stand-off removal tool |
| Scope of Delivery | 1x Eclipse G370A chassis 1x SSD bracket Pre-installed |
| Screws | 18x Mainboard | SSD screws 13x PSU | Chassis screws 4x HDD screws 4x HDD standoff 4x HDD rubber dampener 1x Mainboard stand-off |
| Warranty | 2 Years Limited |
| Note** | **Prices, Specifications & Features are subject to change without notice |
