Noctua NF-A12x15 PWM Chromax Black Swap 120mm Cabinet Fan

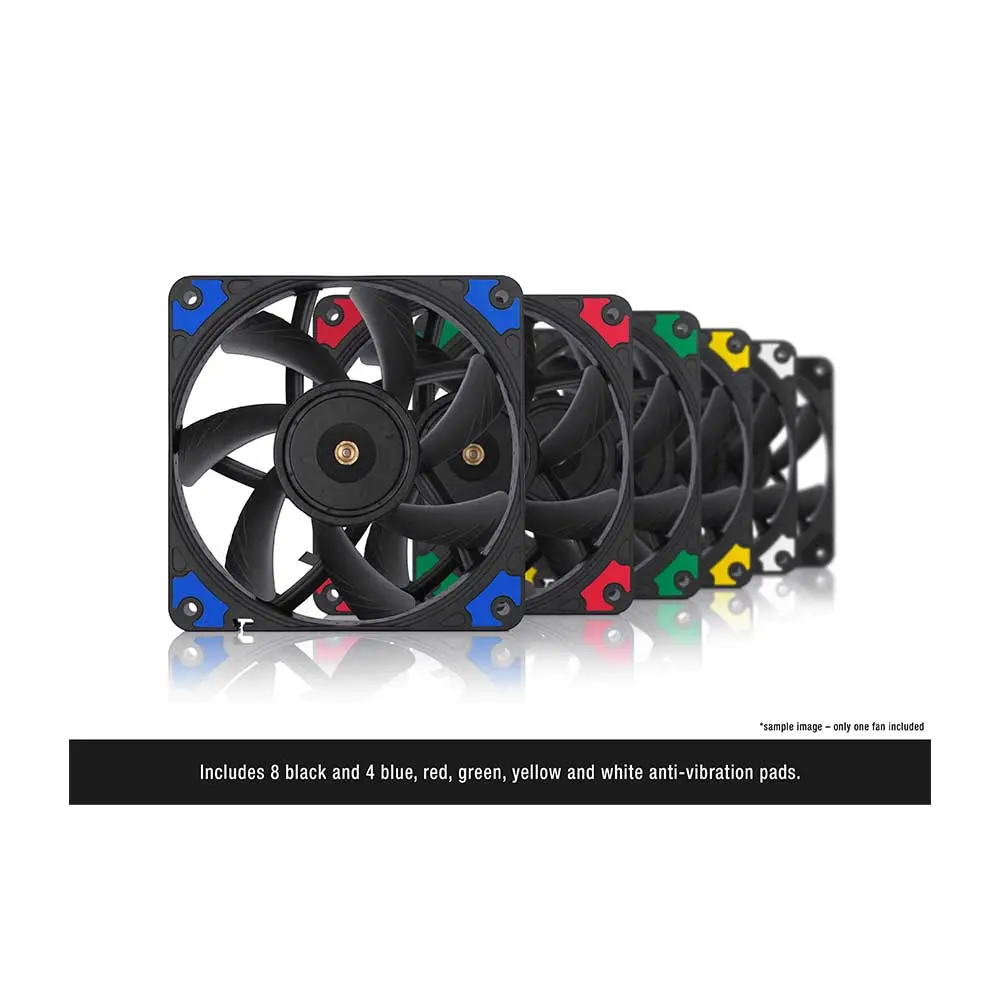

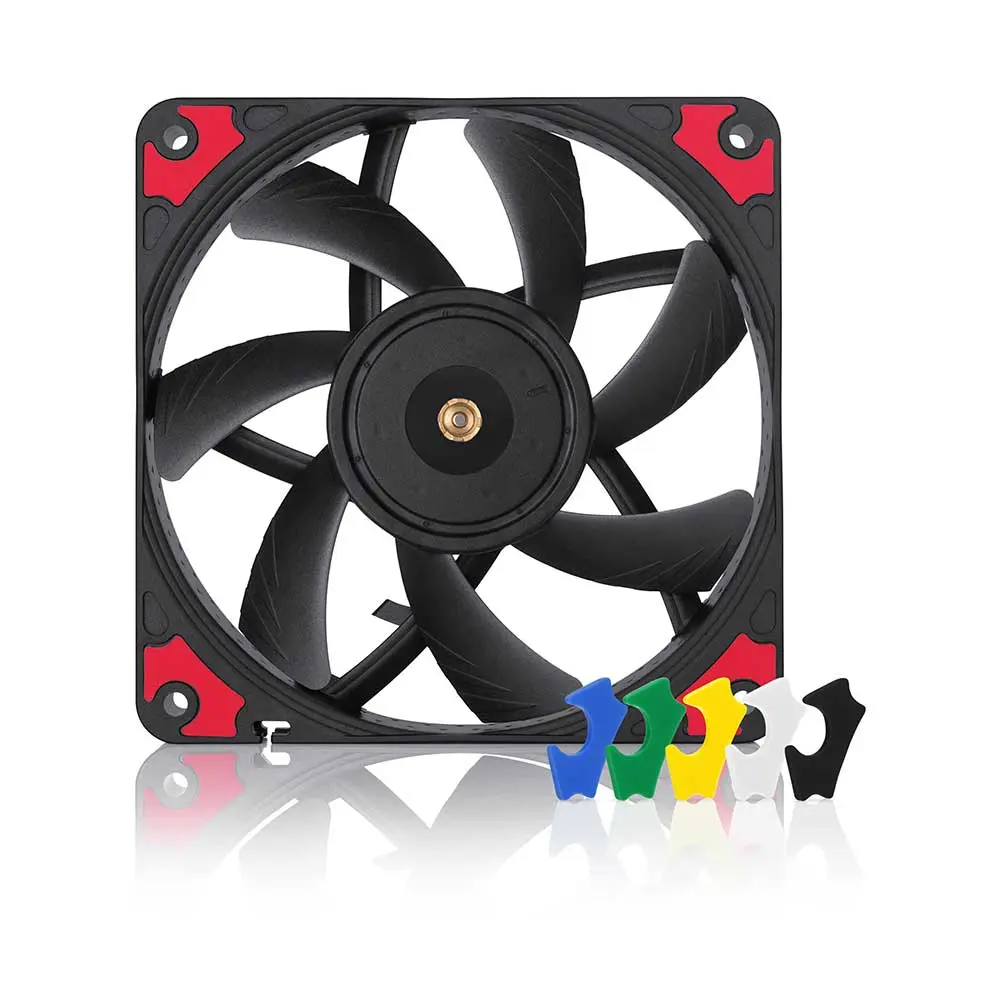

Having received dozens of awards and recommendations from international hardware websites and magazines, the Noctua NF-A12x15 Chromax Black Swap has established itself as a default choice when it comes to premium-quality slim 120mm fans. The chromax.black.swap edition combines the NF-A12x15’s signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-12×15 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
| Fan Specification | |
| Size | 120x120x15 mm |
| Mounting Hole Space | 105×105 mm |
| Connector & Pin Configuration | 4-pin PWM |
| Card Length | 2cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade Geometry | A-Series with Flow Acceleration Channels |
| Frame Technology | AAO (Advanced Acoustic Optimisation) |
| Rotational Speed | 1850 RPM |
| Min. Rotational Speed | 450 RPM |
| Airflow | 94,2 m³/h |
| Acoustical Noise | 23,9 dB(A) |
| Static Pressure | 1,53 mm H₂O |
| Input Power (typical) | 1,27 W |
| Input power (max.) | 1,56 W |
| Input Current (typical) | 0,11 A |
| Max Input Current | 0,13 A |
| Operating Voltage | 12 V |
| Voltage PWM Signal | 5 V |
| MTTF | > 150.000 h |

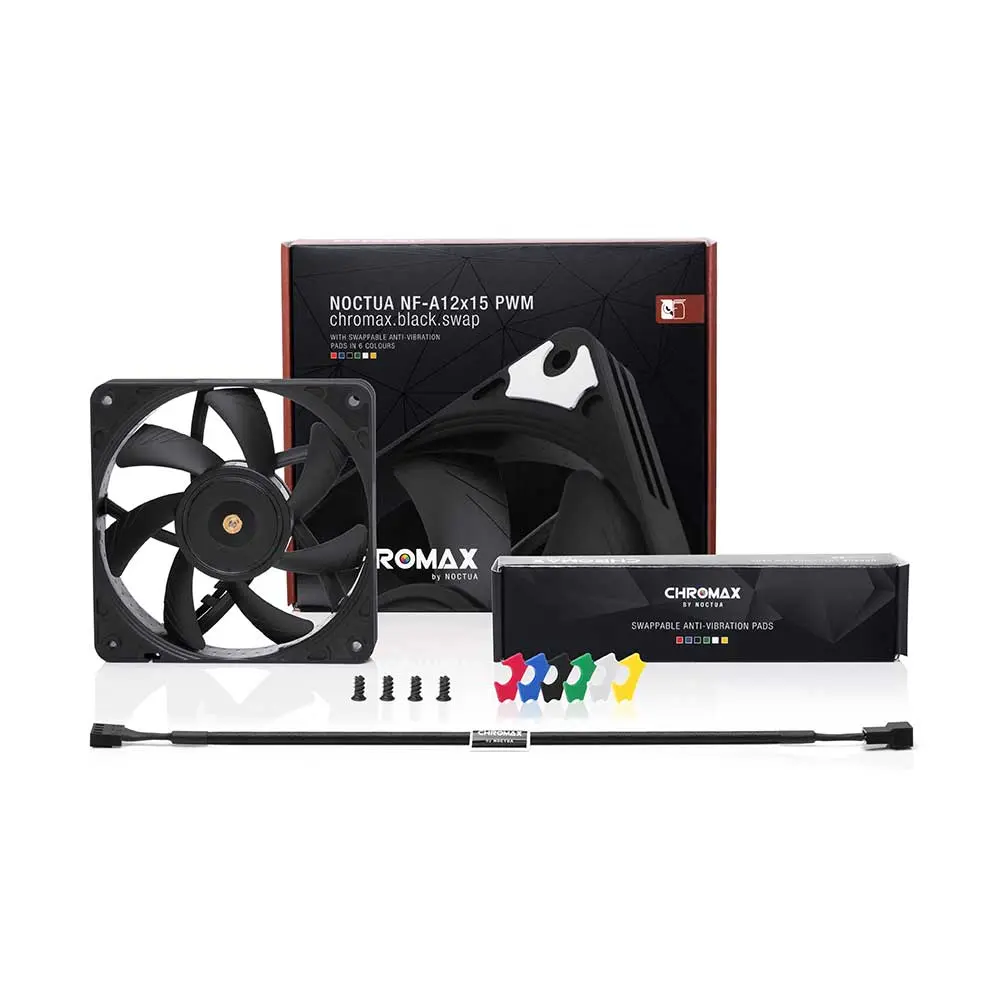

| Scope of Delivery | 8x NA-AVP7 chromax.black anti-vibration pads 8x NA-AVP7 chromax.blue anti-vibration pads 8x NA-AVP7 chromax.green anti-vibration pads 8x NA-AVP7 chromax.red anti-vibration pads 8x NA-AVP7 chromax.white anti-vibration pads 8x NA-AVP7 chromax.yellow anti-vibration pads NA-EC1 chromax.black 30 cm extension cable 4x fan screw |
| Warranty | 6 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
