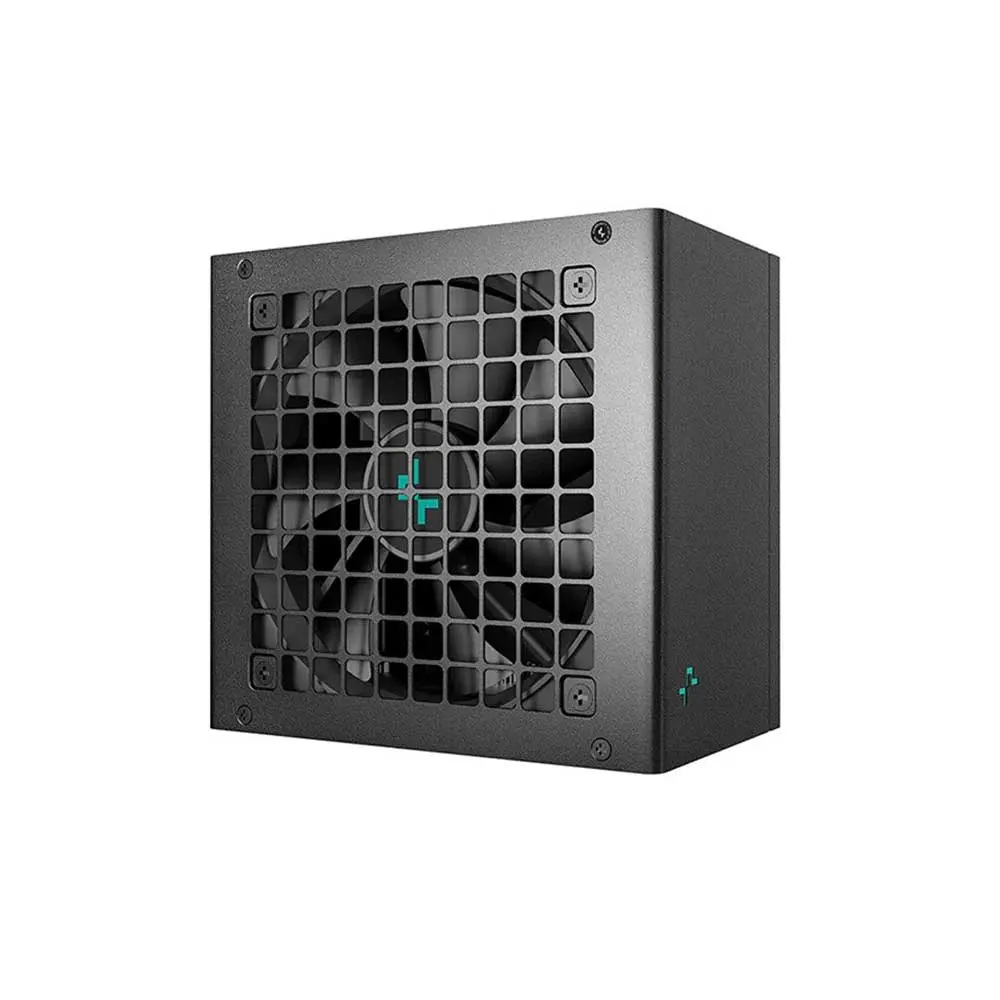

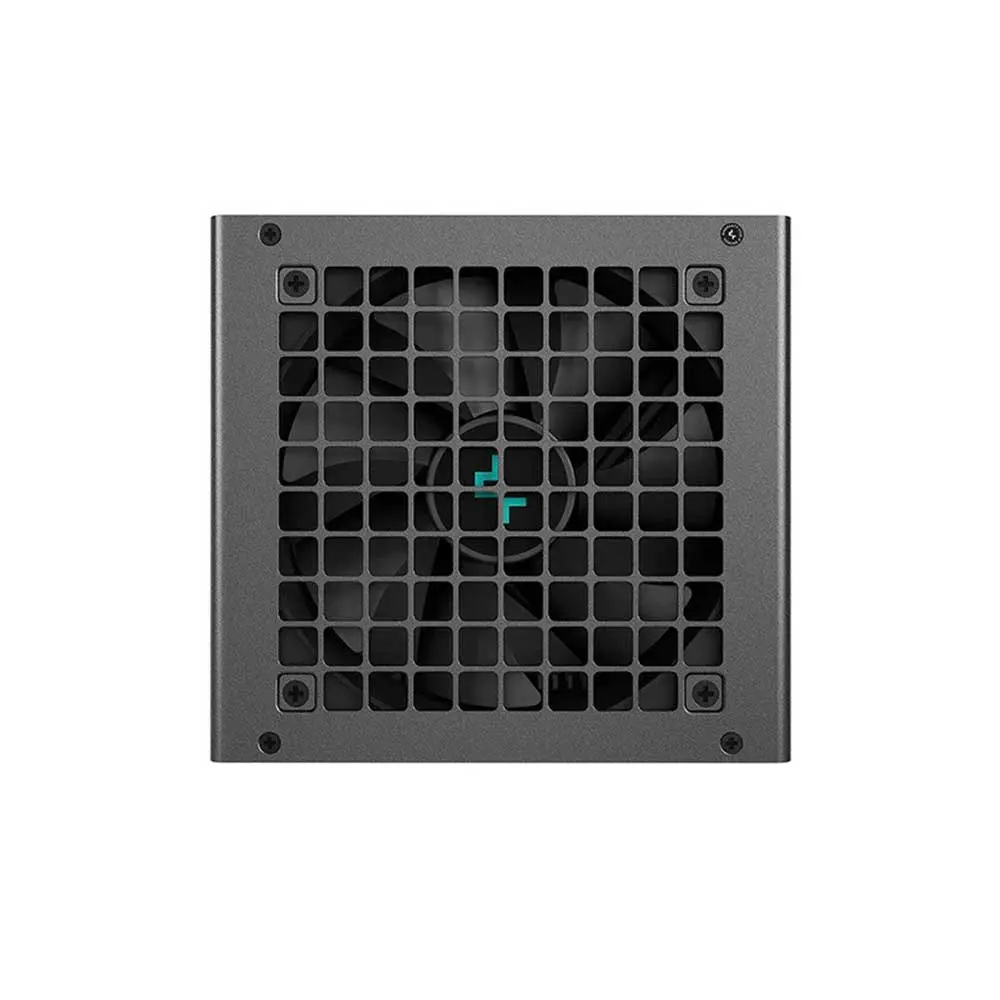

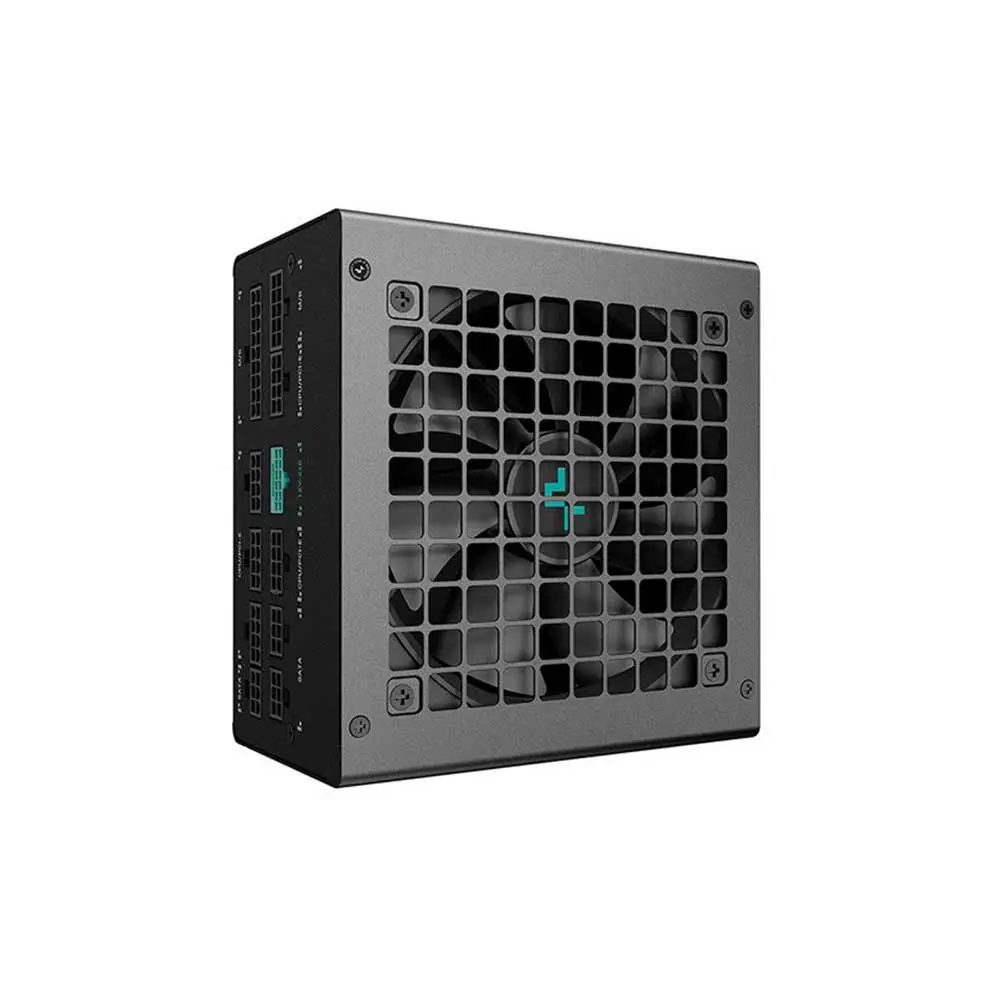

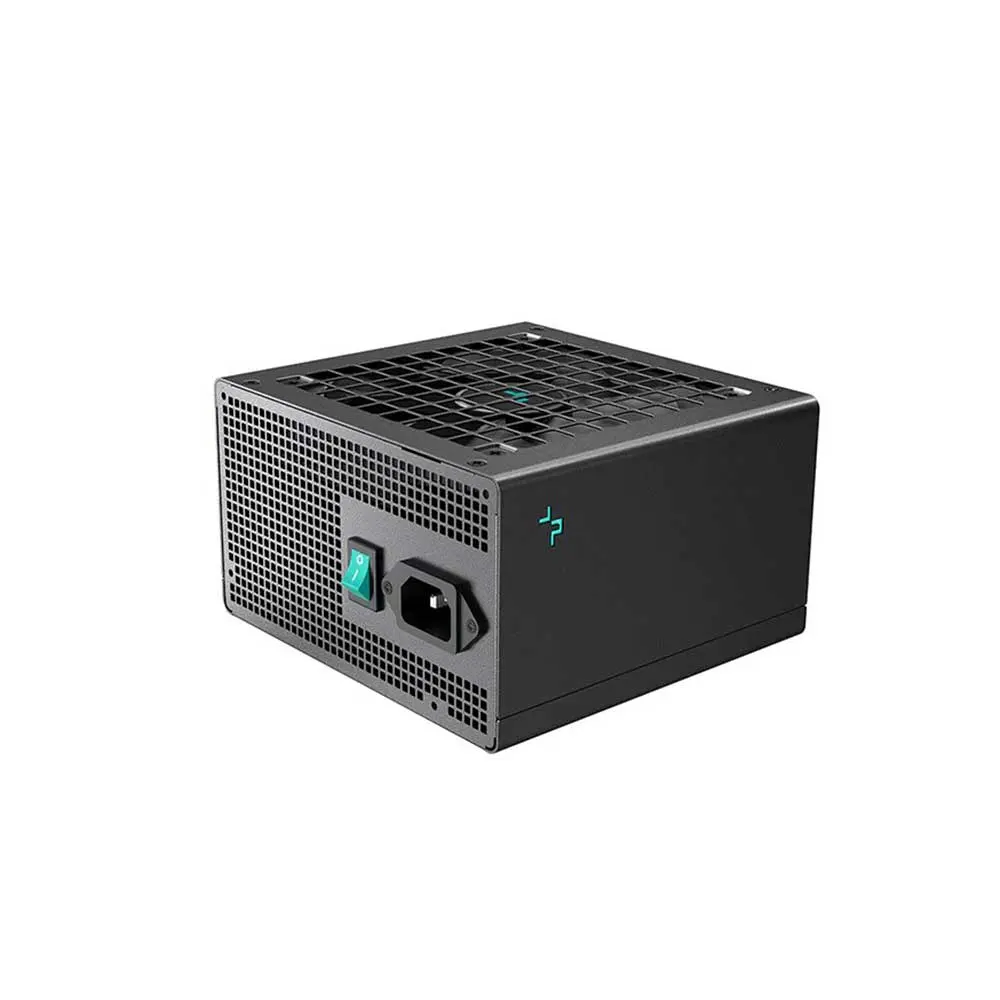

Deepcool PN750M 750 Watt 80 Plus Gold ATX 3.1 Fully Modular Power Supply Black
The DeepCool PN750M 750 Watt is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2×6, 5 EPS/PCIe ports, the PN750M provides stable power for a wide range of modern high-power components.
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency Certification | 80 Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| ERP Registration | ERP 2014 |
| Environment Protection | WEEE/ä¸å›½ RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Part Number | R-PN750M-FC0B-IN |
| Warranty | 10 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
