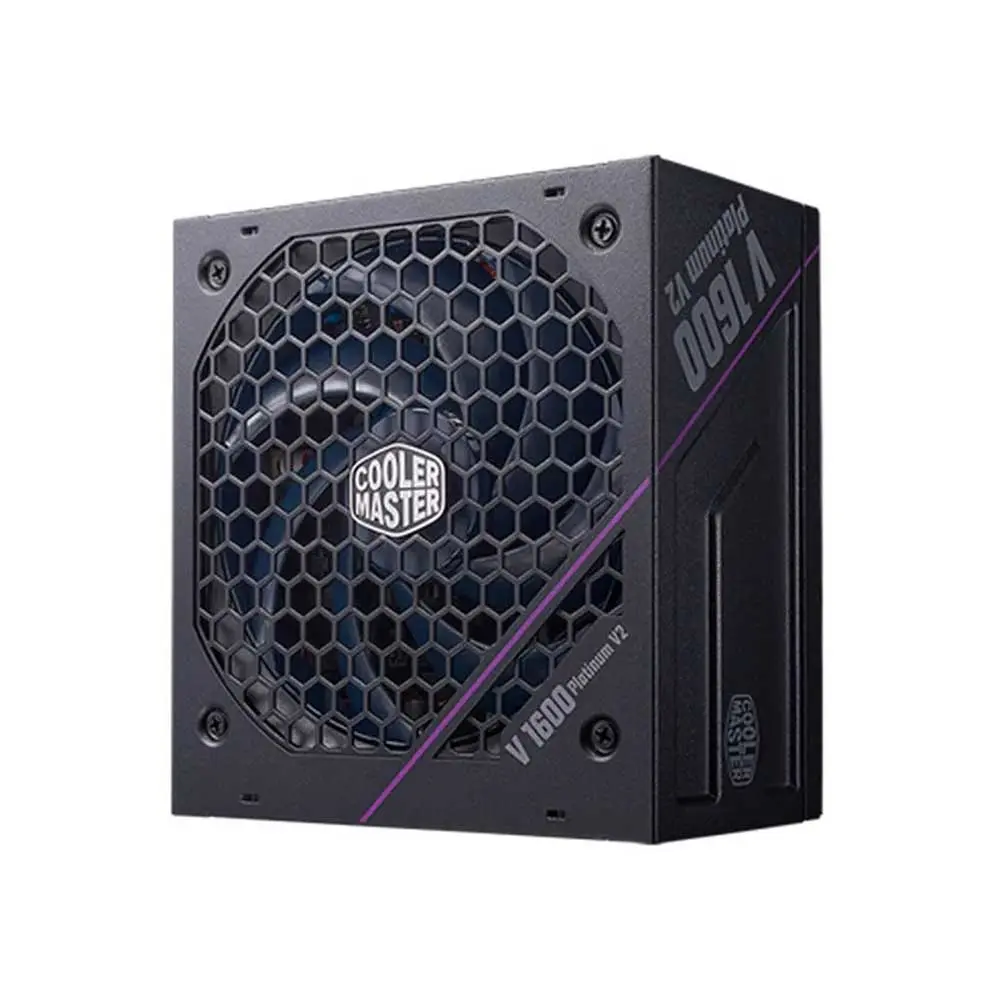

Cooler Master V Platinum 1600 Watt V2 ATX 3.1 Fully Modular Power Supply
- Dual 40 series GPU support
- ATX 3.1 support & two durable 90° 12V-2×6 cables
- Advanced heat dissipation
- Ultra-quiet Mobius fan
- 80 Plus Platinum certification
- 12-year warranty
| Form Factor | ATX |
| Watts | 1600W |
| Category | Above 750W |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Frequency | 50-60Hz |
| ErP 2014 Lot 3 | Yes |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| 80 PLUS Rating | 80 PLUS Platinum |
| EPS 8 Pin Connector | 1 |
| Power Good Signal | 100 – 150 ms |
| 12V-2×6 Connectors | 2 |
| SATA Connectors | 16 |
| MTBF | >100,000 Hours |
| Fan Bearing | LDB |
| 80 Plus | Platinum |
| Operating Temperature | 0-50°C |
| Fan Size | 135mm |
| Input Voltage | 100-240V |
| Peripheral 4 Pin Connectors | 4 |
| Protections | OVP |
| Protections | OPP |
| Protections | SCP |
| Series | V Platinum Series |
| Protections | UVP |
| PCI-e 6+2 Pin Connectors | 5 |
| Protections | OTP |
| Protections | OCP |
| Protections | Surge and Inrush Protection |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Regulatory | CCC |
| Regulatory | CE |
| ATX Version | ATX 12V Ver. 3.1 |
| Regulatory | RCM |
| Fan Speed | 2400±10% RPM |
| Regulatory | EAC |
| Regulatory | cTUVus |
| Regulatory | FCC |
| Efficiency | ≥ 92% @ Typical Load |
| Regulatory | BSMI |
| Hold Up Time | ≥ 16ms |
| Regulatory | TUV |
| Regulatory | UKCA |
| Regulatory | RoHS2.0 / BIS |
| Regulatory | KC (based on region’s request.) |
| Input Current | 16-8A |
| Model | MPZ-G002-AFAP |
| Warranty | 12 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
