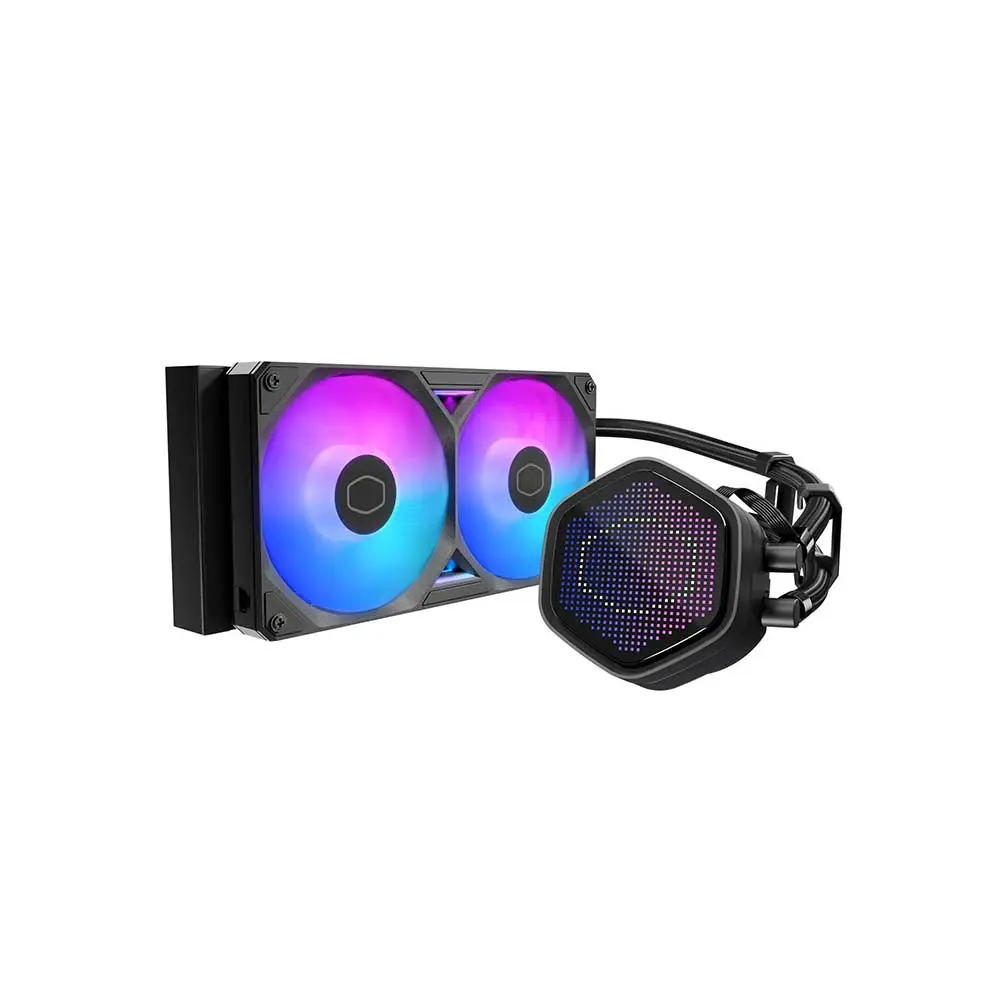

Cooler Master MasterLiquid Atmos II Pixel LED 240mm CPU Liquid Cooler Black
Introducing Cooler Master MasterLiquid Atmos II Pixel LED CPU cooler, designed to elevate your cooling experience. The MasterLiquid Atmos II Pixel LED offers enhanced customization, enabling users to switch the panel information to system stats, GIFs, images, scrolling text and more. The low-profile pump design makes it ideal for fitting into compact cases. The MasterLiquid Atmos II Pixel LED delivers exceptional cooling performance, quieter operation, and the flexibility to personalize your build. Make it yours with Atmos II Pixel LED—the perfect blend of performance, customization, and silence.
- Pixel panel for enhanced personalization
- SickleFlow Edge ARGB fans
- Ultra-low profile pump design
- Quick and easy installation​
| Product Number | MLX-D24M-A25SZ-P1 |
| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 |
| CPU Socket | AMD® AM5 / AM4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch) |
| Pump Dimensions | 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch) |
| Pump Profiles | Addressable Gen2 RGB |
| Pump Speed | 3400 ± 300 RPM |
| Pump MTTF | >210,000 Hours |
| Pump Noise Level | 25 dBA (Max) |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 3.84W |
| Pump Connector | 3-Pin ARGB + 4-Pin PWM |
| Tube Length | 350 mm |
| Fan Dimensions (LxWxH) | 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch) |
| Profile | Addressable Gen 2 RGB |
| Fan Quantity | 1 PC |
| Fan Speed | 690 ~ 2500 RPM ± 15% |
| Fan Airflow | 240.35 m³/h (141.4 CFM) |
| Fan Air Pressure | 3.61 mmH2O |
| Fan MTTF | >160,000 Hours |
| Fan Nouse Level | 36 dB(A) |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.5A |
| Fan Safety Current | 0.8A |
| Fan Power Consumption | 6 W |
| Radiator Size | 240 |
| Cooler Type | Liquid Cooler |
| Series | MasterLiquid |
| Pixel LED Exterior Color | Black |
| Pixel LED Dimensions | 85 x 79.2 x 16 mm (3.4 x 3.1 x 0.6 inch) |
| Pixel LED Connector | USB Type-C to Motherboard 9 pin |
| Pixel LED Screen Resolution | 28 x 26 px (556 px) |
| Pixel LED Screen Orientation | Software-MasterCTRL adjustable |
| Pixel LED Rated Voltage | 5 VDC |
| Pixel LED Rated Current | 0.5 A |
| Pixel LED Safety Current | 5.0 A |
| Pixel LED Power Consumption | 2W |
| Warranty | 6 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
