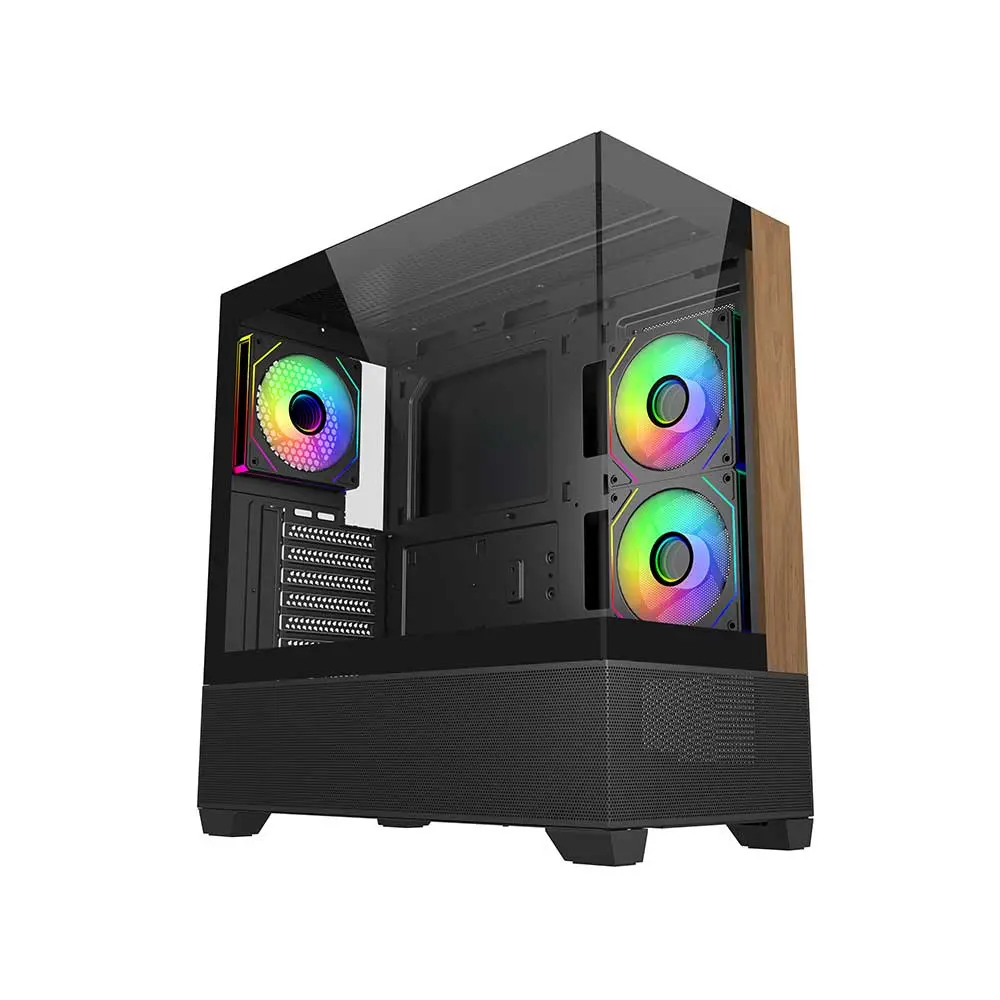

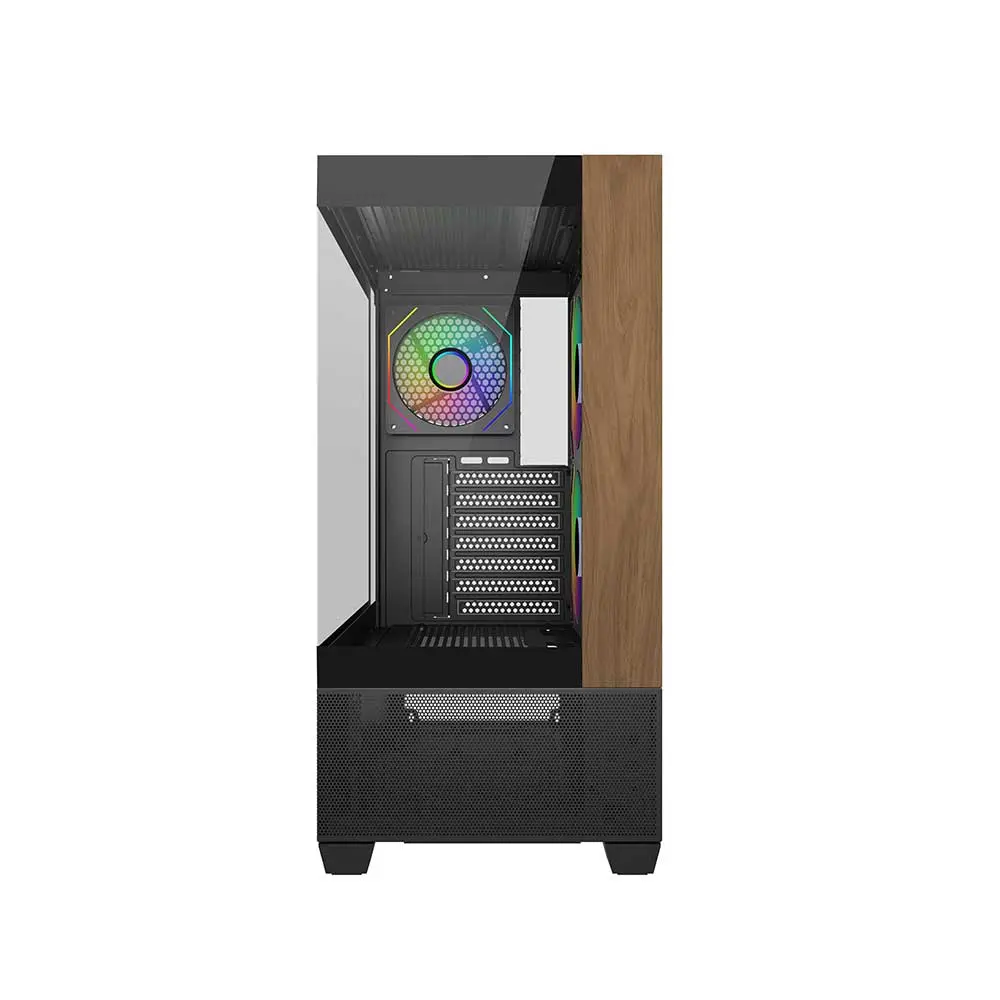

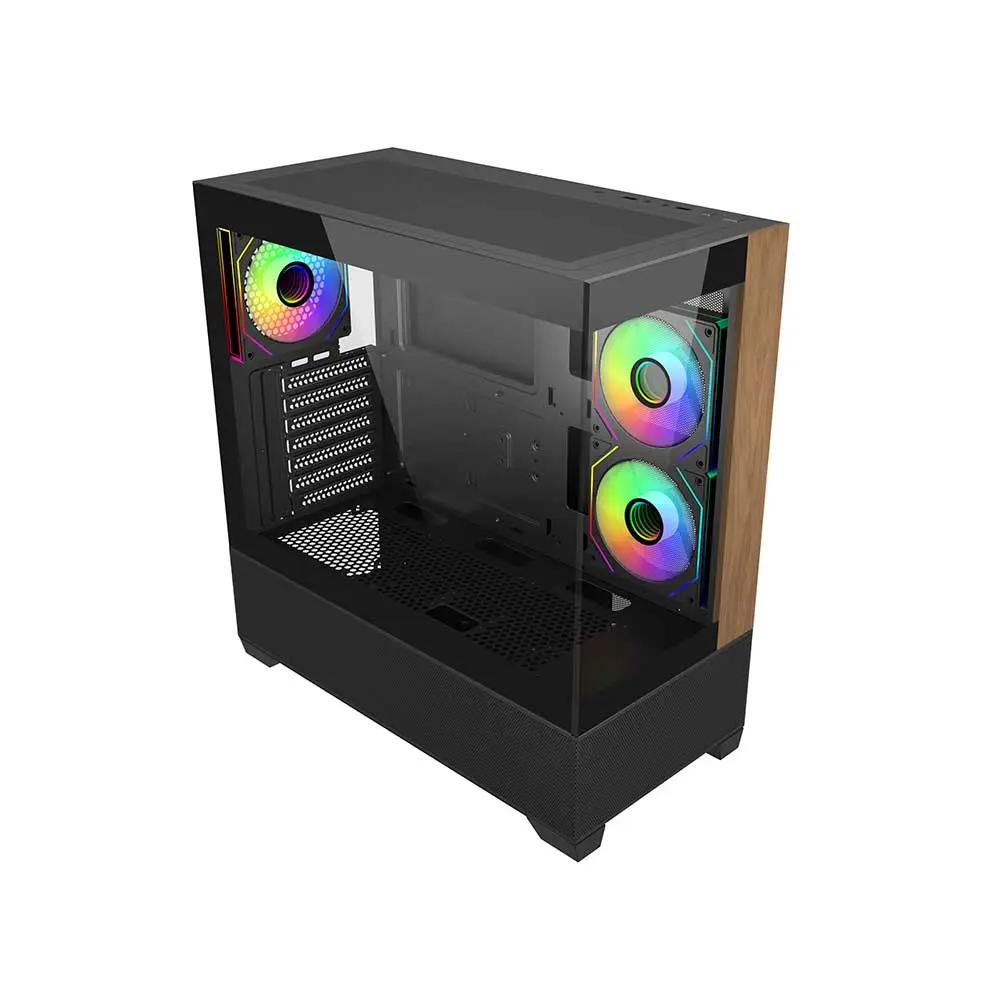

Cooler Master Elite 690 Wood Micro ATX Mid Tower Cabinet Black
The Cooler Master Elite 690 embraces a clean, modern design, featuring dual tempered glass panels on the front and side to showcase premium components and RGB lighting. The front panel combines a natural wood-textured accent with a lower mesh intake, delivering both aesthetic warmth and effective airflow. With expansive ventilation on the top and bottom, the chassis supports versatile fan and radiator configurations to enable a powerful vertical cooling path. Whether building a high-performance showcase rig or a style-driven desktop setup, the Elite 690 delivers the perfect balance of function and form.
| Product Name | Elite 690 Wood |
| Product Number | E690-KHNN-S00 |
| Color | Black |
| Front Panel | Tempered Glass + Wood |
| Side Panel (left) | Tempered Glass |
| Side Panel (right) | Steel |
| Dimensions (LxWxH) – Incl. Protrusions | 434 x 218 x 454mm |
| Dimensions (LxWxH) – Excl. Protrusions | 430 x 218 x 435mm |
| Volume (Liters Incl. Protrusions) | 42.93L |
| Motherboard Support | ATX / Micro-ATX / ITX |
| Expansion Slots | 7 |
| Drive Bays | |
| 5.25’’ ODD | N/A |
| 3.5’’ HDD | 1 (max 2) |
| 2.5’’ SSD | 1 (Max 2) |
| I/O Panel | |
| USB Ports | 1 x USB Type C 20Gbps / 2 x USB 3.0 |
| Audio In / Out 3.5 mm | 1 x 3.5mm Combo |
| Fan Support | |
| Top | 2 x 140mm / 3 x 120mm |
| Rear | 1 x 120mm |
| Side Mount | 2 x 120mm |
| Bottom | 3 x 120mm |
| Preinstalled Fan(s) | |
| Rear | 1 x 120mm ARGB PWM |
| Side Mount | 2 x 120mm ARGB PWM reverse fan |
| Radiator Support | |
| Top | 360 / 280 / 240 / 120mm |
| Bottom | 360 / 240 / 120mm |
| Side Mount | 240 / 120mm |
| Clearances | |
| CPU Cooler | 170mm |
| Power Supply | 250mm |
| Graphics Card | 425mm |
| Power Supply Support | ATX |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
