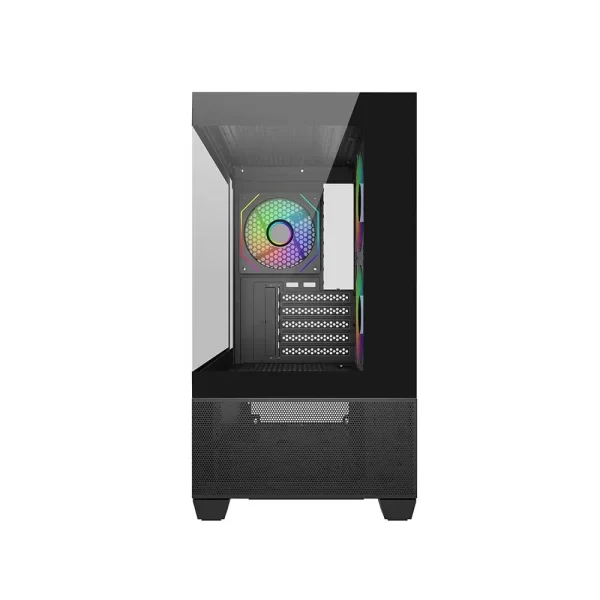

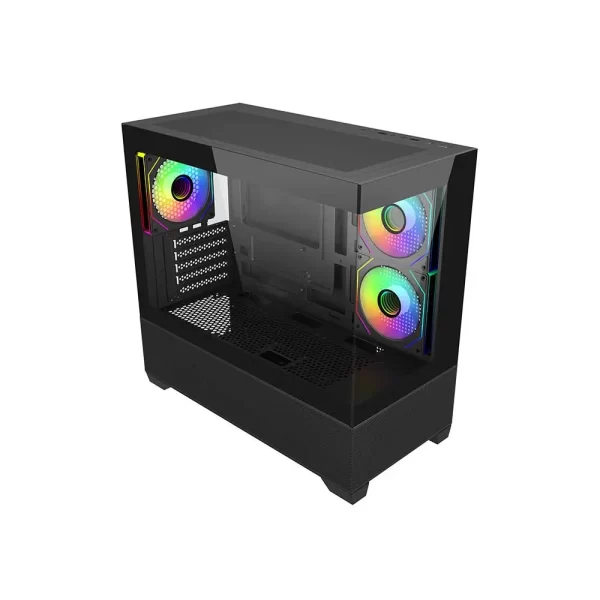

Cooler Master Elite 490 Micro ATX Mid Tower Cabinet Black
The Elite 490 delivers a clean, modern aesthetic in a space-efficient mATX form factor. Featuring dual tempered glass panels on the front and side, it offers a wide, uninterrupted view of your build’s lighting and hardware. Despite its compact size, the Elite 490 supports full-sized cooling solutions with up to 360mm radiator compatibility and room for 9 fans—perfect for minimalist setups that demand performance.
| Product Name | Elite 490 |
| Product Number | E490-KHNN-S00 |
| Color | Black |
| Front Panel | Tempered Glass |
| Side Panel (left) | Tempered Glass |
| Side Panel (right) | Steel |
| Dimensions (LxWxH) – Incl. Protrusions | 434 x 218 x 414mm |
| Dimensions (LxWxH) – Excl. Protrusions | 430 x 218 x 395mm |
| Volume (Liters Incl. Protrusions) | 39.16L |
| Motherboard Support | Micro-ATX / ITX |
| Expansion Slots | 5 |
| Drive Bays | |
| 5.25’’ ODD | N/A |
| 3.5’’ HDD | 1 (max 2) |
| 2.5’’ SSD | 1 |
| I/O Panel | |
| USB Ports | 1 x USB Type C 20Gbps / 2 x USB 3.0 |
| Audio In / Out 3.5 mm | 1 x 3.5mm Combo |
| Fan Support | |
| Top | 2 x 140mm / 3 x 120mm |
| Rear | 1 x 120mm |
| Side Mount | 2 x 120mm |
| Bottom | 3 x 120mm |
| Preinstalled Fan(s) | |
| Rear | 1 x 120mm ARGB PWM |
| Side Mount | 2 x 120mm ARGB PWM reverse fan |
| Radiator Support | |
| Top | 360 (Max height 45mm) / 240 / 120mm |
| Bottom | 360 / 240 / 120mm |
| Side Mount | 240 / 120mm |
| Clearances | |
| CPU Cooler | 170mm |
| Power Supply | 250mm |
| Graphics Card | 425mm |
| Power Supply Support | ATX |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
